Triumph USA8000 8,000 lb Service & Storage 4-Post Lift, Made in the USA
Triumph USA8000 8,000 lb Service & Storage 4-Post Lift, Made in the USA - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Most shipped orders are delivered within 4 to 7 business days from the date your order is placed.
Larger equipment may ship by LTL freight. The carrier may contact you to coordinate delivery.
Tracking information is sent by email once your order ships.
Delivery dates are estimates and may vary by product availability, destination, and freight carrier scheduling.
Pay by ACH or bank wire transfer and receive an additional 3% off your order.
SELECT ACH / WIRE AT CHECKOUT →Purchasing multiple units or ordering for a business? Contact us for a custom quote or invoice.
Triumph USA8000 8,000 lb Service & Storage 4-Post Lift, Made in...
Triumph USA8000 8,000 lb Service & Storage 4-Post Lift, Made in the USA - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Need Help Choosing the Right Equipment?
Have questions about specifications, compatibility, delivery, installation, or which model fits your needs? Our U.S. based team is here to help before you order.
Description
Description
Description

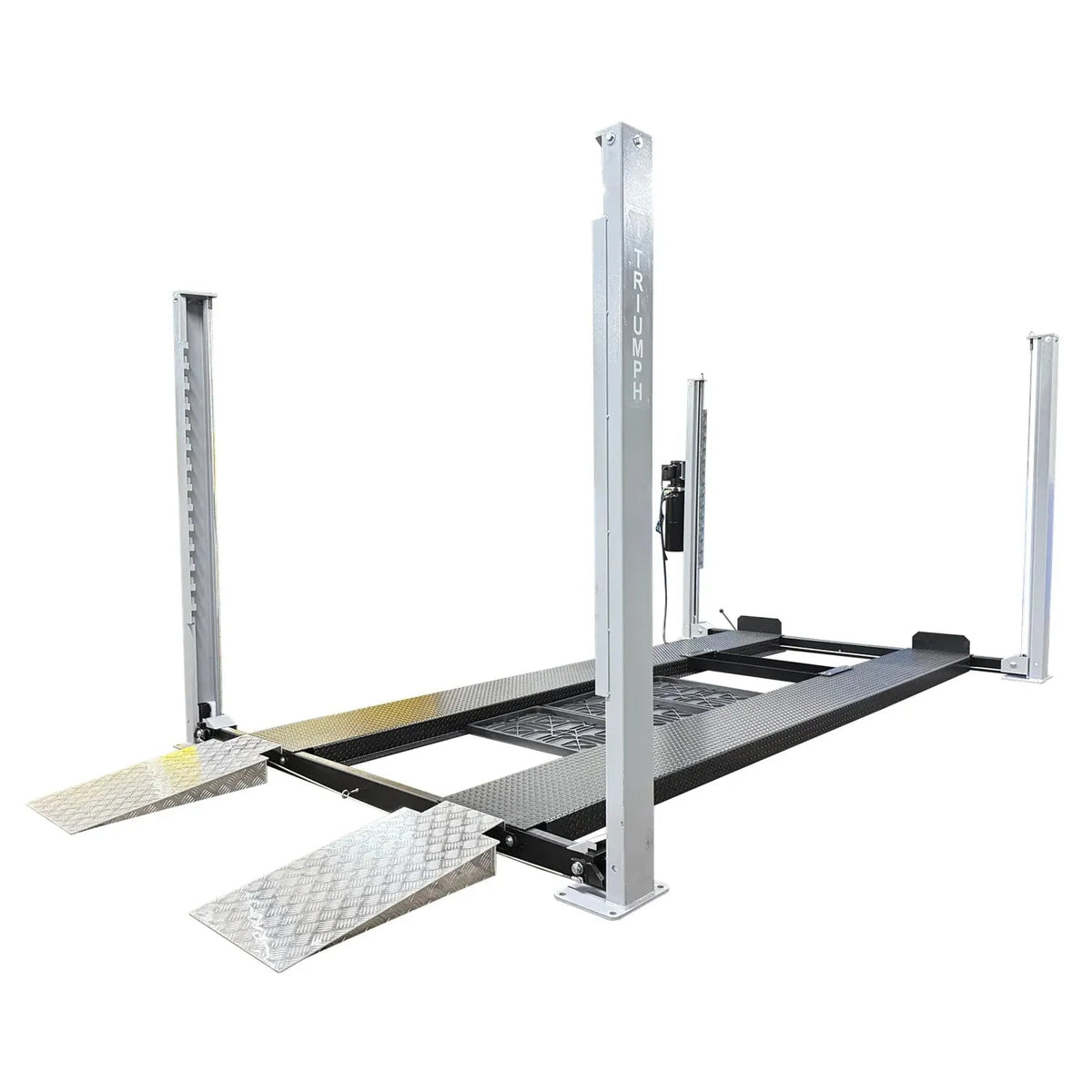

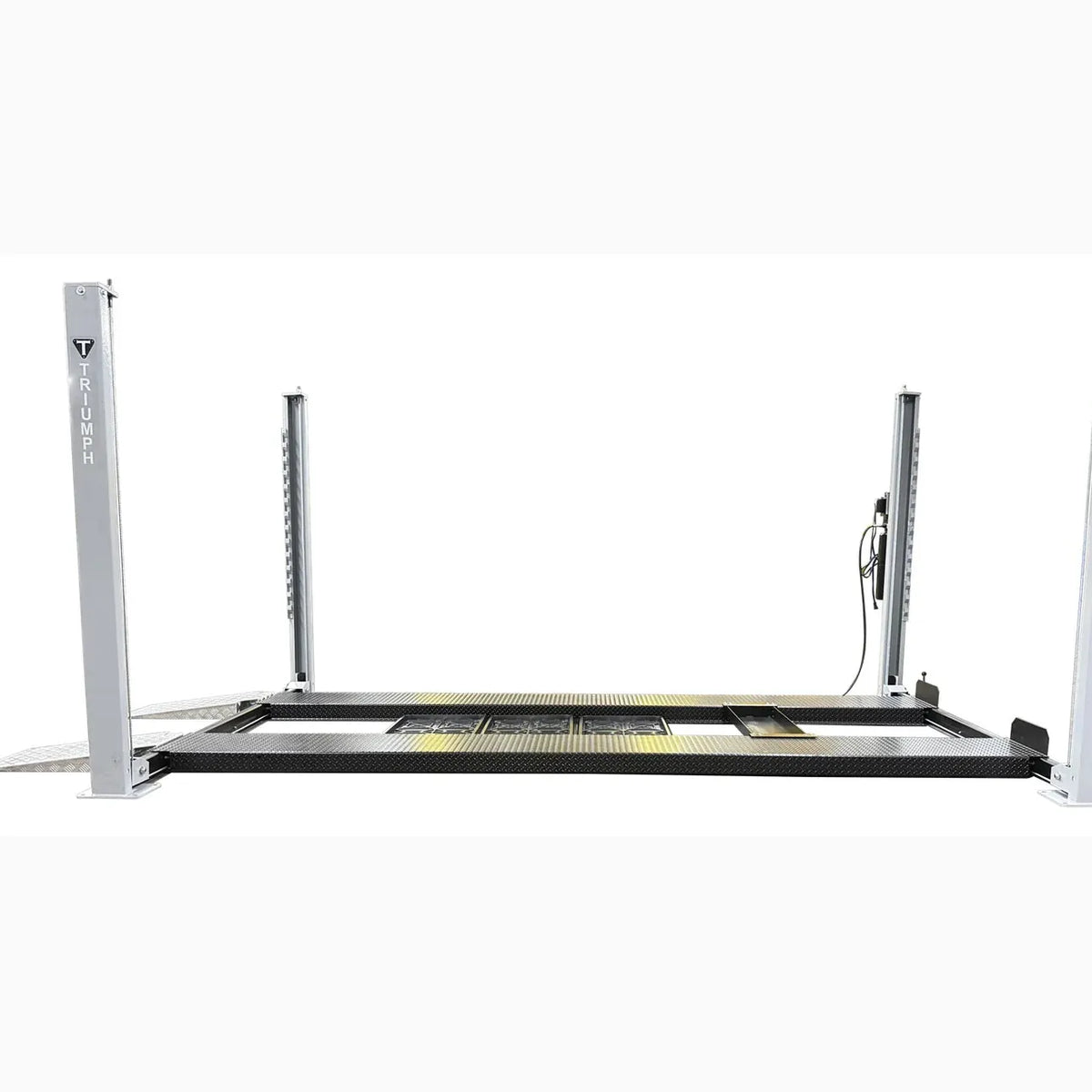

The Triumph USA8000 is an 8,000-lb four-post automotive lift built for both vehicle service and long-term storage. Drive the vehicle onto the diamond-plate runways, raise it on a single control, and the lift locks automatically, so the same machine that lets you work underneath also doubles your garage floor for a second car. The frame is Made in the USA on a design that has been in service for more than 20 years. At 8,000 lb, it covers most cars, light trucks, and SUVs.
Lifting is handled by a hydraulic power unit that runs on standard 110-volt household power, so no dedicated 220-volt circuit is required. As the runways rise, automatic safety latches engage at 14 locking positions, and a single-point lock release drops all four columns together when you are ready to lower. Full travel takes about 40 seconds to the 73-inch maximum lift height.
In the interest of full transparency: the frame and structure are made in the USA, but the power unit is not made in the USA.
Site and electrical requirements
Per the installation manual, the lift should be set on a minimum of 4 inches of 3,500-psi steel-reinforced concrete with no more than 2 degrees of slope, not on asphalt or wood. The power unit plugs into a 110-volt outlet. Plan for overhead clearance as well: the runways rise to a 73-inch lift height, so the total clearance you need is 73 inches plus the height of your vehicle.
Features
- 8,000-lb capacity carried across two full-length diamond-plate runways.

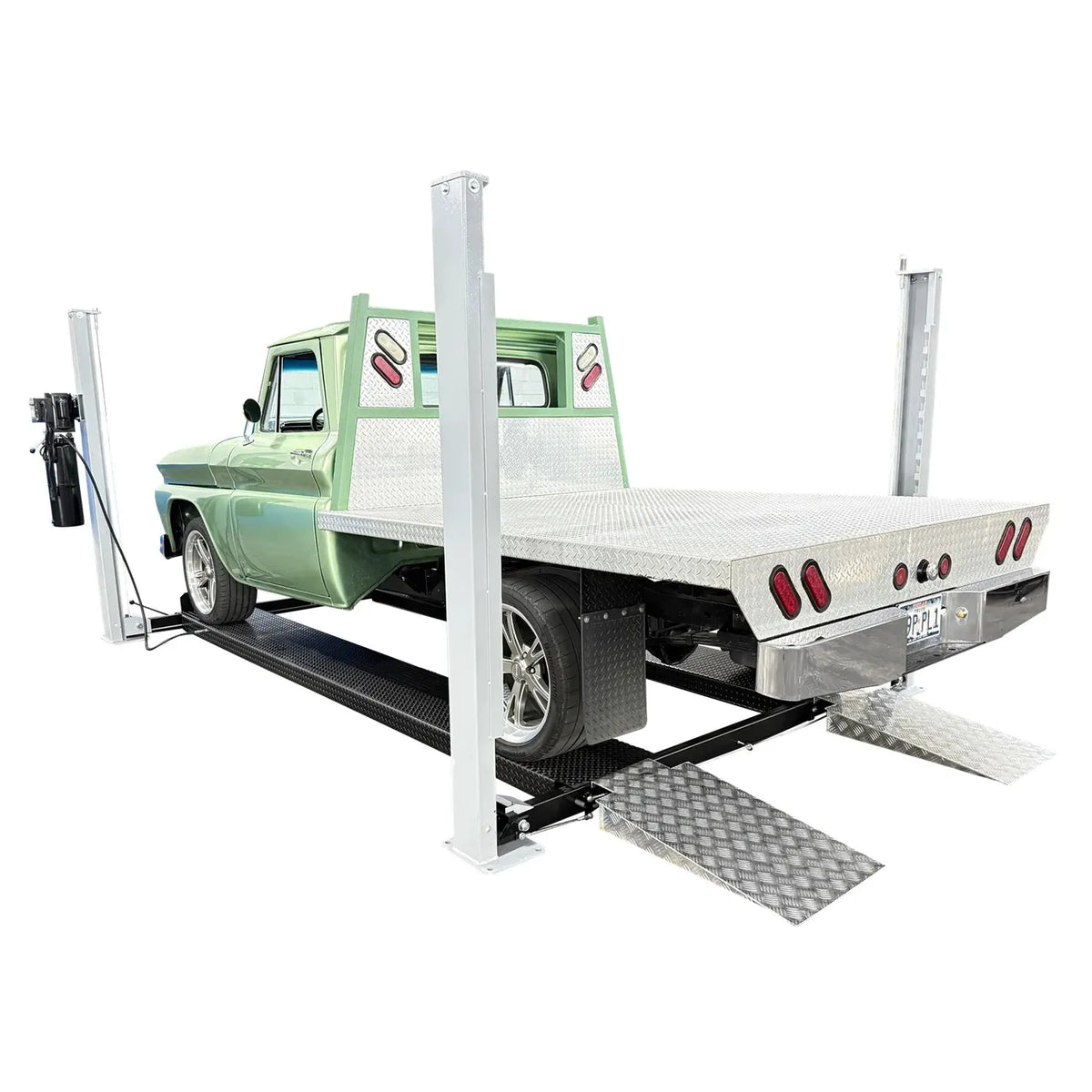

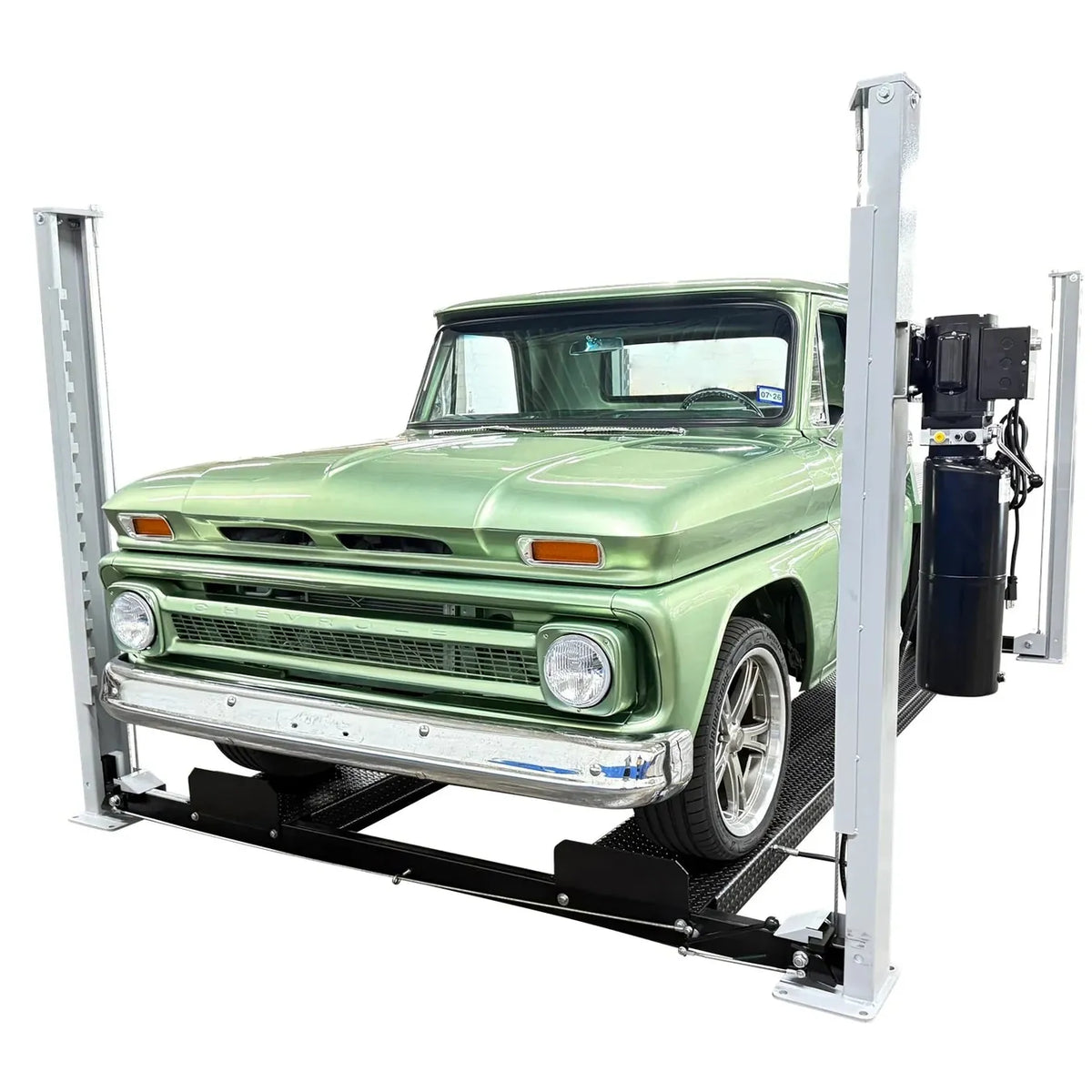

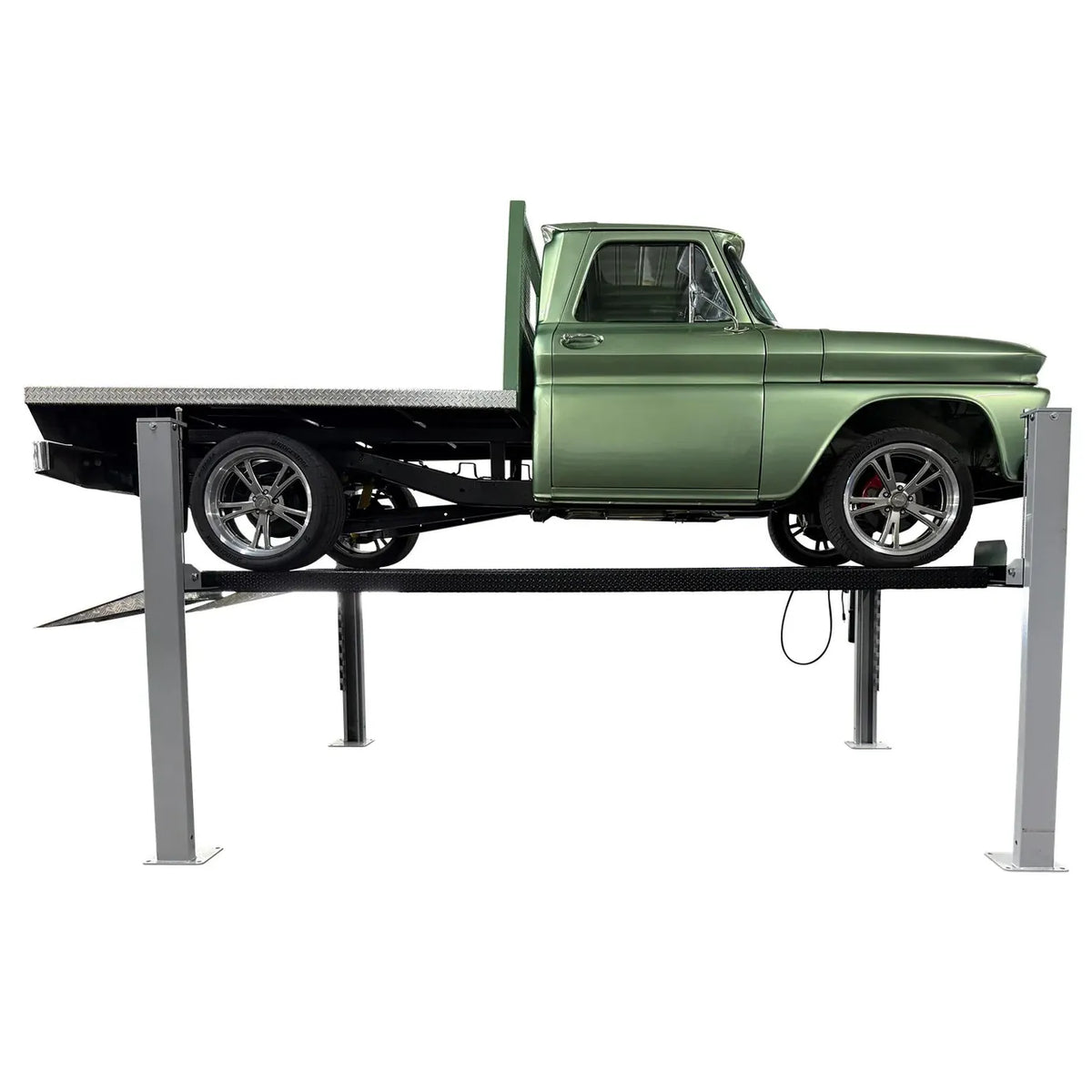

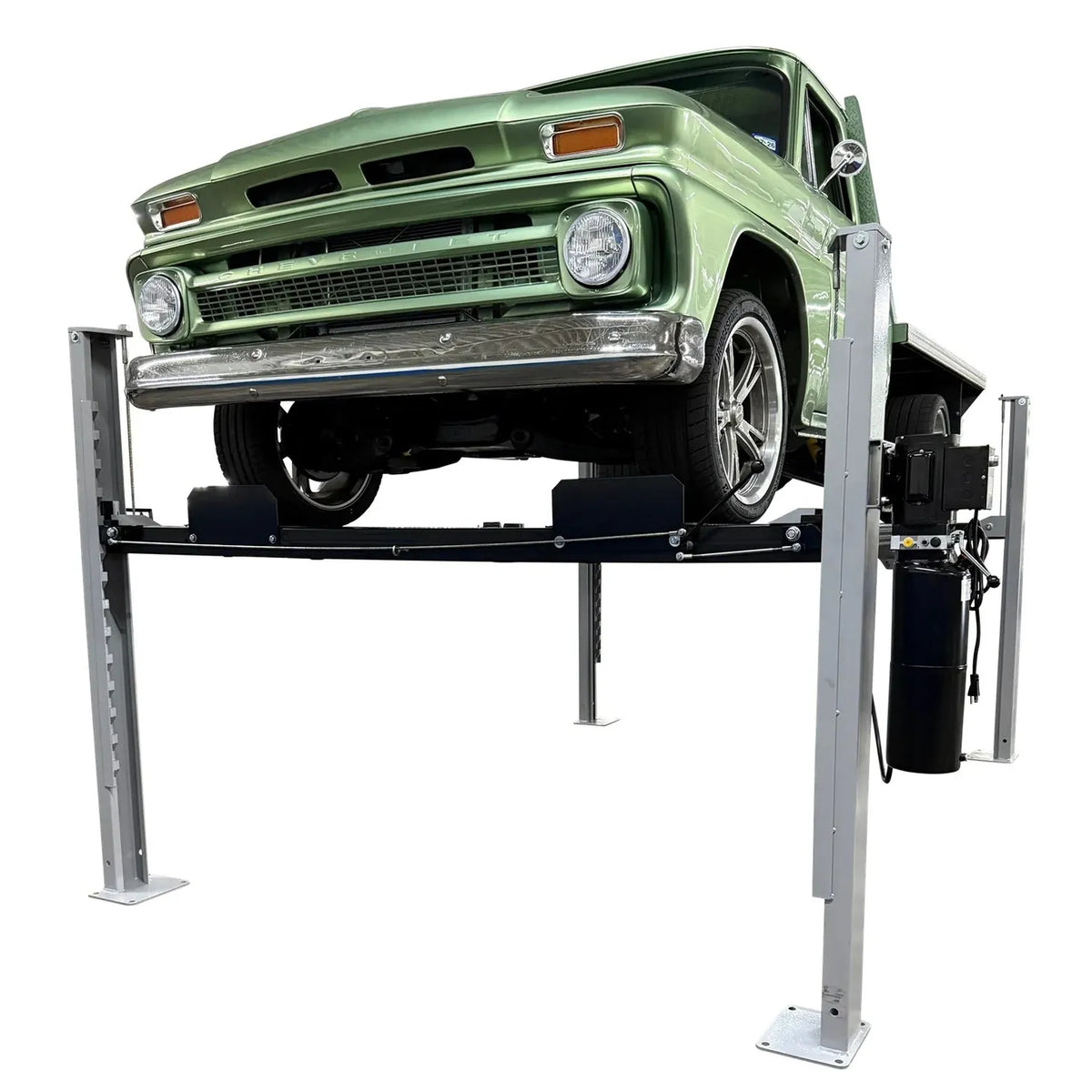

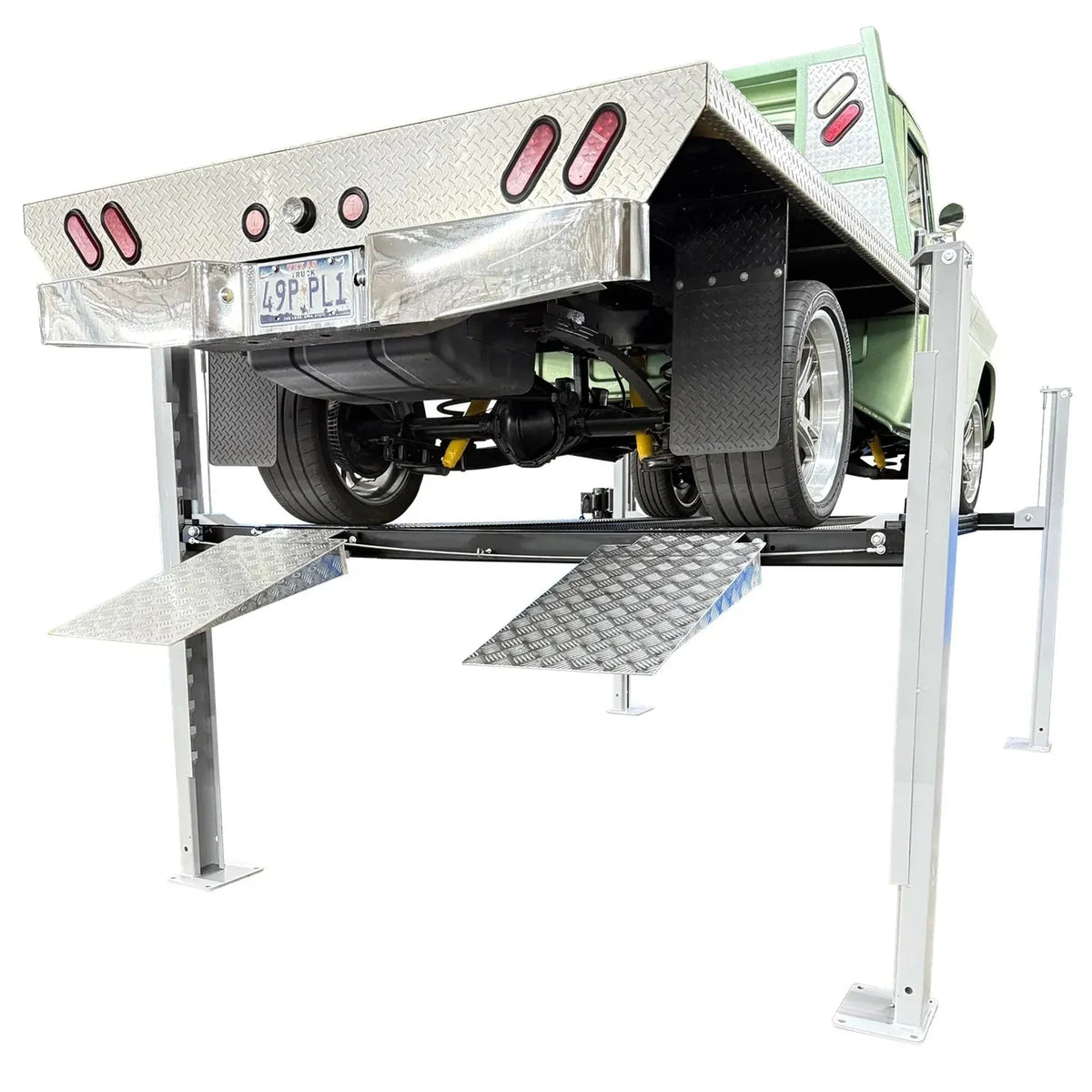

- Service or storage: work beneath a raised vehicle, or park a second car underneath the first.

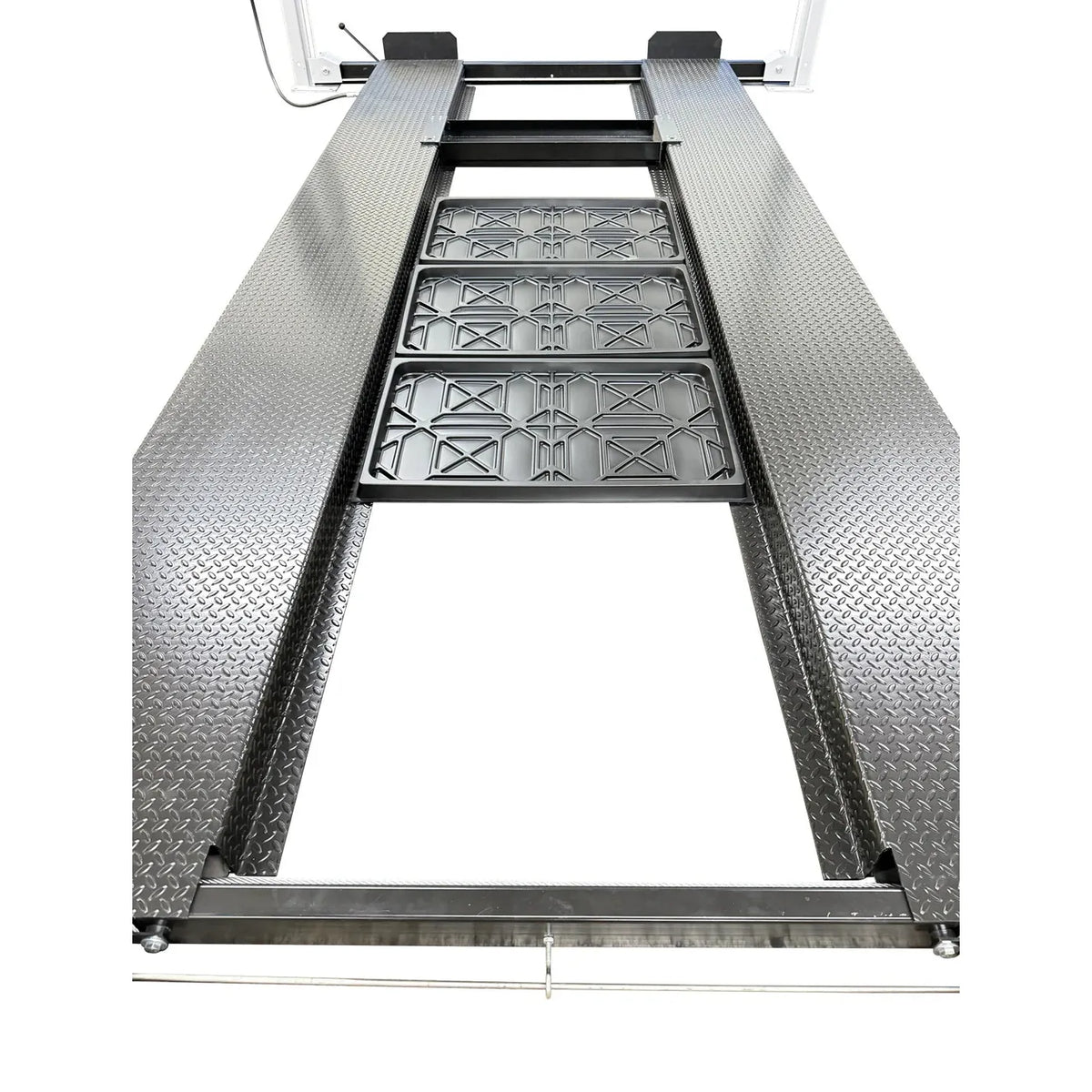

- Three drip trays seat between the runways and catch fluid from the upper vehicle so it never reaches the car stored below.
- Jack tray accepts a bottle jack or floor jack so you can raise one end of the vehicle off the runways.
- Caster kit lets you roll the lift around the shop or garage; it is fully portable.
- 14-position automatic locking with a single-point release that lowers all four columns together.
- Runs on 110-volt power: no special wiring or 220-volt service.
- Made-in-USA frame on a 20-plus-year proven design; standard finish is grey and black.
What's Included
The USA8000 arrives as a complete package. The accessories other lifts sell separately are in the box:
- Two drive-on diamond-plate approach ramps with wheel stops
- Three drip trays
- Jack tray (for a bottle or floor jack)
- Caster kit for rolling the lift
- Installation & operation manual
An optional Triumph SJ-35 3,500-lb sliding jack is available separately for raising a wheel or axle while the vehicle stays on the runways. The sliding jack is not made in the USA, and there is currently no US-made option for it.
Custom Colors
The USA8000 is available in custom runway and crossrail colors at no extra charge. The columns stay grey, while the runways and crossrails can be painted in one of Triumph's available custom colors. If you want a color that is not shown, contact us before ordering and we can confirm availability.
- Custom color orders are non-cancelable once placed.
- Production time is approximately 3 weeks plus freight transit.
- The columns remain grey.
- Only the runways and crossrails can be custom painted.
- The drip trays remain black plastic.
- The power unit remains black.
- The aluminum ramps cannot be painted.
To order a custom color, add your requested color in the order notes or contact us at support@projectfoundry.co or 331-272-5655 before placing the order.
Specifications
| Triumph USA8000 Specifications | |
|---|---|
| Capacity | 8,000 lbs |
| Overall Height | 82" |
| Overall Length (without approach ramps) | 175" |
| Overall Length (with approach ramps) | 207" |
| Overall Width | 112" |
| Overall Width (with power unit) | 124" |
| Lift Height | 73" |
| Height Under Runway | 69" |
| Runway Length | 165" |
| Drive-Thru Width | 102.5" |
| Runway Width | 19" |
| Between Runways | 37" |
| Lowered Height | 5" |
| Locking Positions | 14 |
| Base Plate Size | 12" x 10" |
| Lock Release | Single Point |
| Lift Time | 40 seconds |
| Voltage | 110V |
| Hydraulic Fluid | AW-32 or ISO-32 |
| Reservoir Capacity | Approx. 12 quarts |
| Shipping Weight | 1,600 lbs |
| Standard Finish | Grey and black |
| Foundation: minimum 4" of 3,500-psi steel-reinforced concrete, no more than 2 degrees of slope (per installation manual). Hydraulic fluid and reservoir capacity per installation manual. | |
Shipping & Delivery
Your lift ships on an LTL common-carrier freight truck, a 48-foot semi. Please read these delivery terms before ordering:
- You are responsible for unloading the lift from the truck; the driver does not unload it.
- Lift-gate delivery is not available for auto lifts.
- A lift this heavy cannot be unloaded by hand. You need a forklift, Bobcat, tractor, tow truck, or backhoe.
- You schedule the delivery appointment directly with the freight company.
If you cannot unload at your location, the lift can ship to the carrier's nearest freight terminal for pickup with a trailer or moving van. For help choosing a delivery option, email support@projectfoundry.co or call 331-272-5655.
Warranty
Triumph covers the USA8000 with a 1-year parts warranty (parts only, no labor). If something fails, call us; we troubleshoot over the phone, then ship the needed part free of charge by ground service. Labor to install the replacement part is not covered. The hydraulic cylinders carry a 30-day full warranty, after which a seal kit is provided. Rubber lifting pads are not covered.
FAQ
Can the USA8000 be used for both service and storage?
Yes. Raise a vehicle to work underneath it, or park one car on the runways above a second car on the floor. The three drip trays keep fluid from the upper vehicle off the one below.
What does the lift need for installation?
A minimum of 4 inches of 3,500-psi steel-reinforced concrete with no more than 2 degrees of slope, plus a standard 110-volt outlet. Do not install it on asphalt or wood.
How much overhead clearance do I need?
The runways rise to a 73-inch lift height. Add the height of your vehicle, plus working clearance, to find the ceiling height your space needs.
Can I move the lift after it is set up?
Yes. The included caster kit lets you roll the lift around the shop or garage, so it does not have to stay in one spot.
What hydraulic fluid does it use?
AW-32 or ISO-32 hydraulic oil; the reservoir holds about 12 quarts (per the installation manual).
Documents
Download the full installation and operation manual:
