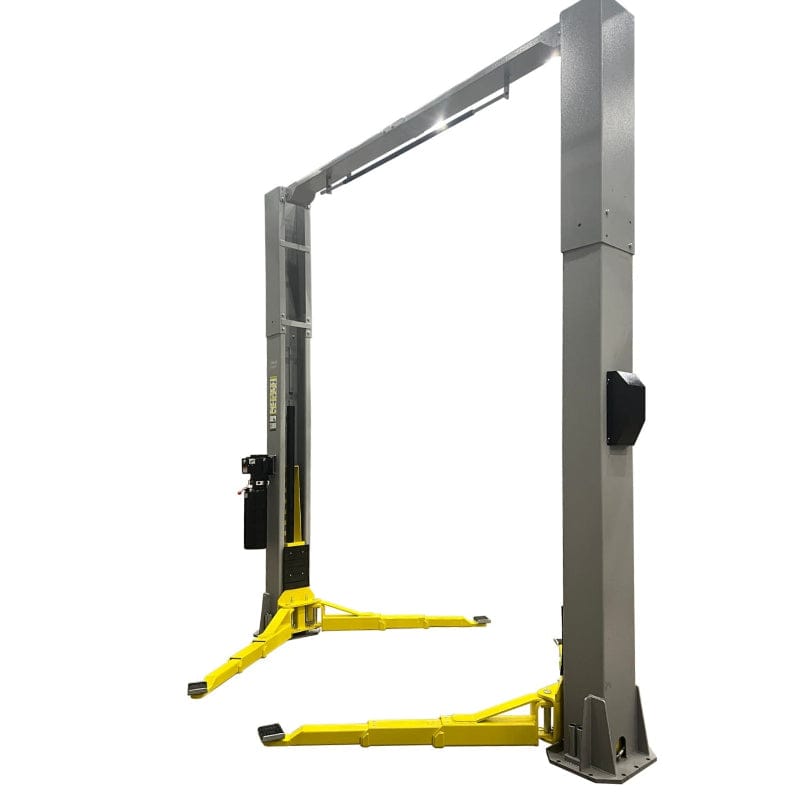

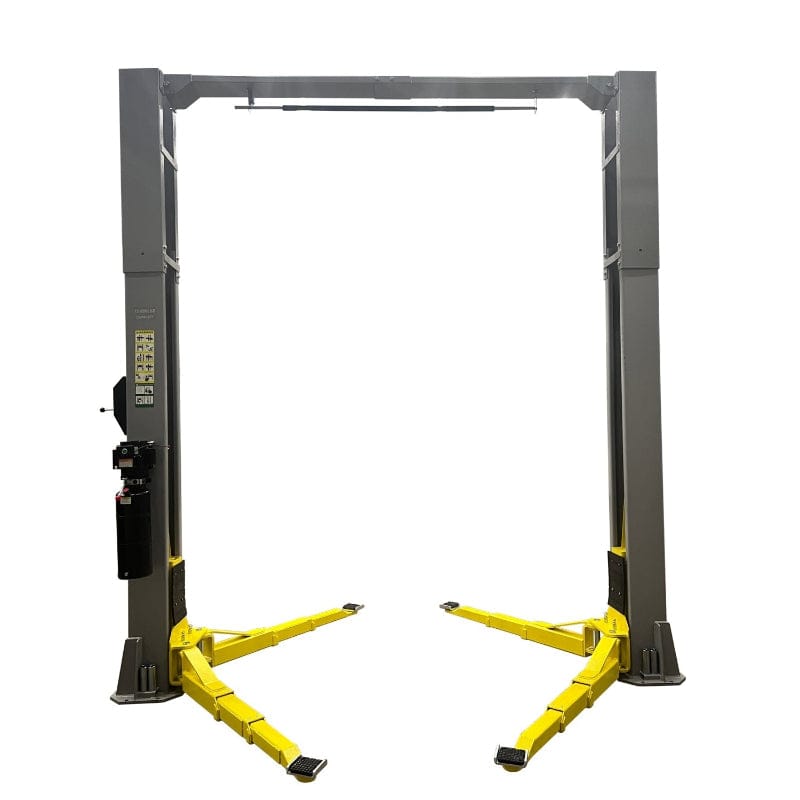

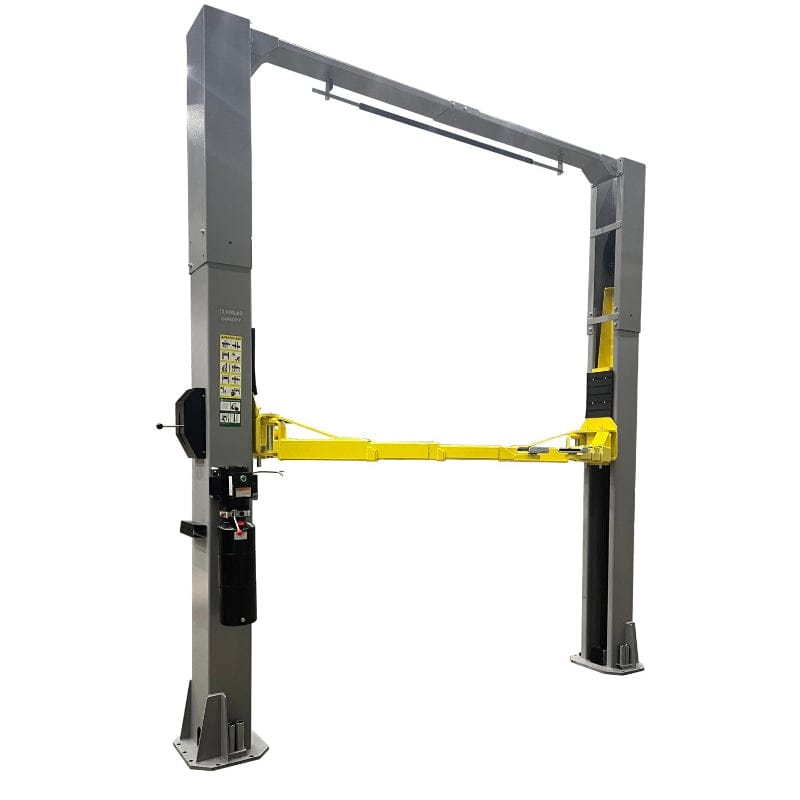

Triumph NTO-13A 13,000 lb Two Post Overhead Lift
Triumph NTO-13A 13,000 lb Two Post Overhead Lift - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Most shipped orders are delivered within 4 to 7 business days from the date your order is placed.
Larger equipment may ship by LTL freight. The carrier may contact you to coordinate delivery.
Tracking information is sent by email once your order ships.
Delivery dates are estimates and may vary by product availability, destination, and freight carrier scheduling.
Pay by ACH or bank wire transfer and receive an additional 3% off your order.
SELECT ACH / WIRE AT CHECKOUT →Purchasing multiple units or ordering for a business? Contact us for a custom quote or invoice.
Triumph NTO-13A 13,000 lb Two Post Overhead Lift
Triumph NTO-13A 13,000 lb Two Post Overhead Lift - Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Need Help Choosing the Right Equipment?
Have questions about specifications, compatibility, delivery, installation, or which model fits your needs? Our U.S. based team is here to help before you order.
Description
Description
13,000 lb capacity | Overhead two-post | 220V / 3HP |
The Triumph NTO-13A is built for the jobs that separate “good enough” from done right. With a true 13,000 lb lifting capacity, rugged above-ground overhead design, and smooth direct-drive cylinders, this lift is ready for heavier trucks, long-wheelbase vehicles, and busy-shop repetition, day after day, raise after raise.
It’s engineered to feel confident at every height. The lift climbs to a full 74" lifting height, reaches lock-up fast (about 55 seconds), and protects your workflow with an electrical override automatic safety shut-off. Add the single-point lock release, included truck adapters, and free mounting hardware, and you’ve got a serious, no-nonsense solution that’s ready to earn its place in your bay.
ISO 9001 and CE Certified/Compliant. Includes a 1-year parts warranty (no labor).
Key Highlights
- Heavy-Duty 13,000 lb Capacity: Ideal for trucks, SUVs, and heavier vehicles that push lighter lifts to the limit.
- Overhead Two-Post Design: Keeps the floor clear and your drive-through path open for easy positioning.
- Direct Drive Cylinders: Smooth, consistent lifting performance with fewer moving parts to fuss with.
- Fast Lift Cycle: Approximately 55 seconds to full lift, get the vehicle up and get to work.
- Single-Point Lock Release: Simple, efficient lock release from one location, no running side to side.
- Electric Safety Cutoff: Electrical override automatic safety shut-off helps protect the lift and your workspace.
- Truck-Ready Out of the Box: Includes truck adapters for added reach and flexibility.
- Shop Power Friendly: Runs on 220V with a 3HP power unit for confident lifting.
What’s Included
- Triumph NTO-13A 13,000 lb Overhead Two-Post Lift
- Free mounting hardware
- Truck adapters
- Single-point lock release system
- Electrical override automatic safety shut-off
- Standard 1-year parts warranty (no labor)
Installation Requirements
- Concrete Requirement: Must be installed on a 6" slab with a minimum 4,000 PSI rating.
- Lowered Height: 5", low profile to make loading and arm placement easier.
- Overhead Clearance: Overall height is 162", verify ceiling height and top clearance before purchase.
How You’ll Use It (Everyday Workflow)
- Drive in and center the vehicle between the posts using the generous 109" drive-thru width.
- Position the arms, add the included truck adapters when needed, and confirm contact points.
- Raise the vehicle to working height, lock in with confidence using the lift’s safety system.
- Release locks easily with the single-point lock release when you’re ready to bring it down.

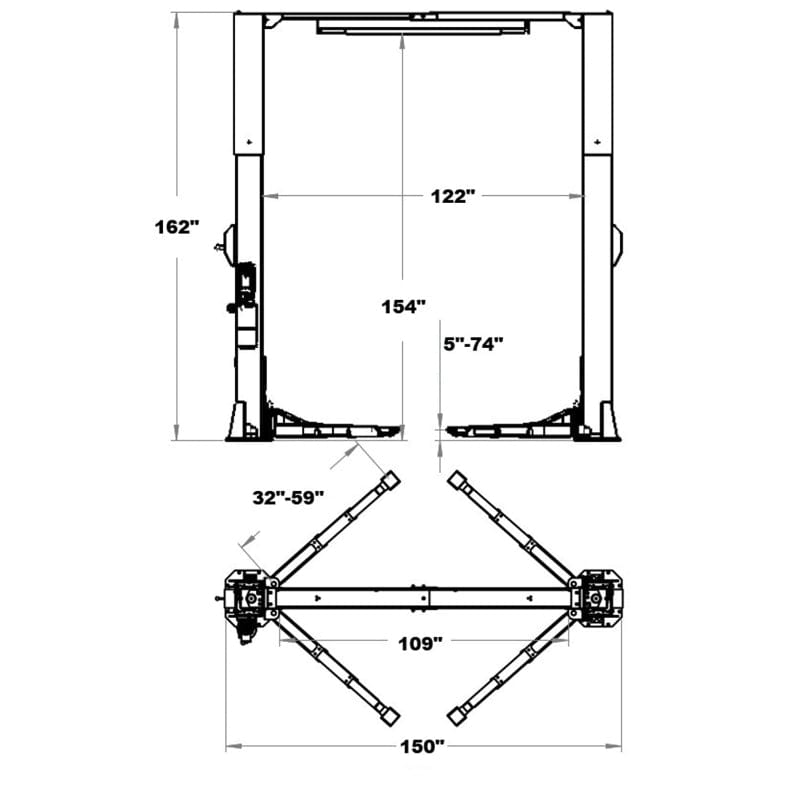

Specifications
| Capacity | 13,000 lbs |
| Style | Overhead |
| Overall Height | 162" |
| Overall Width | 150" |
| Distance Between Posts | 122" |
| Drive Thru Width | 109" |
| Lifting Height | 74" |
| Lowered Height | 5" |
| Base Plate Size | 20" x 20" |
| Truck Adapters | Yes |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 55 seconds |
| Voltage | 220V |
| Horsepower | 3 HP |
| Concrete Requirement | 6" slab, 4,000 PSI |
Shipping & Delivery Notes (Please Read)
Your auto lift ships via LTL freight on a common carrier and arrives on a 48-foot semi truck. Please plan ahead, freight is different than small-package delivery.
- You are responsible for unloading the lift. The driver does not unload it.
- Lift gate service is not available for auto lifts.
- You cannot unload by hand. You must have equipment capable of lifting the full weight of the shipment (forklift, bobcat, tractor, tow truck, backhoe, etc.).
- If unloading is an issue, we can ship to the carrier’s nearest freight terminal for pickup with a trailer or moving van.
- You are responsible for calling the freight company to schedule a delivery appointment.
- Freight transit can take 3-14 days depending on location.
- When your lift ships, we will email carrier details and a tracking number.
Warranty
Triumph Lifts include a 1-year parts warranty (no labor). If an issue arises, call us and we’ll troubleshoot with you over the phone. If a part is needed, we ship the replacement part free of charge, including free ground shipping.
- Labor is not covered: Replacement part installation is performed by you or a mechanic of your choice.
- Exclusions: Rubber lifting pads are not covered.
- Cylinder coverage: Cylinders include a 30-day full warranty. After 30 days, a seal kit is provided.
Bring real lifting muscle to your shop. The Triumph NTO-13A is the overhead two-post that’s ready for heavier vehicles, tighter schedules, and work you’ll be proud to stand behind.
