Katool 11,000 lb 4-Post Storage Lift 4H110
Katool 11,000 lb 4-Post Storage Lift 4H110 - 110v / Warehouse Pickup is backordered and will ship as soon as it is back in stock.
Need Help Choosing the Right Equipment?
Have questions about specifications, compatibility, delivery, installation, or which model fits your needs? Our U.S. based team is here to help before you order.
Description
Description
Description

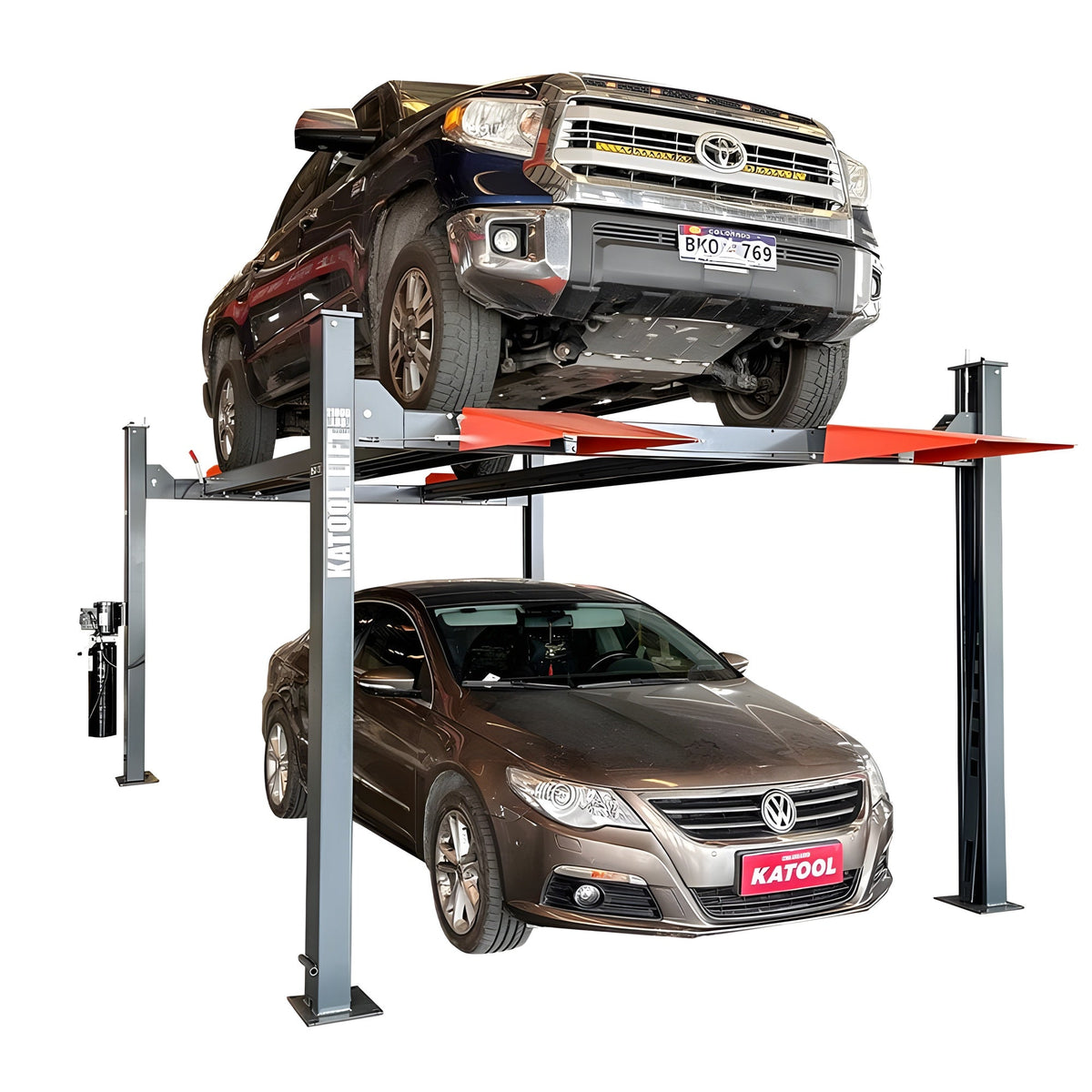

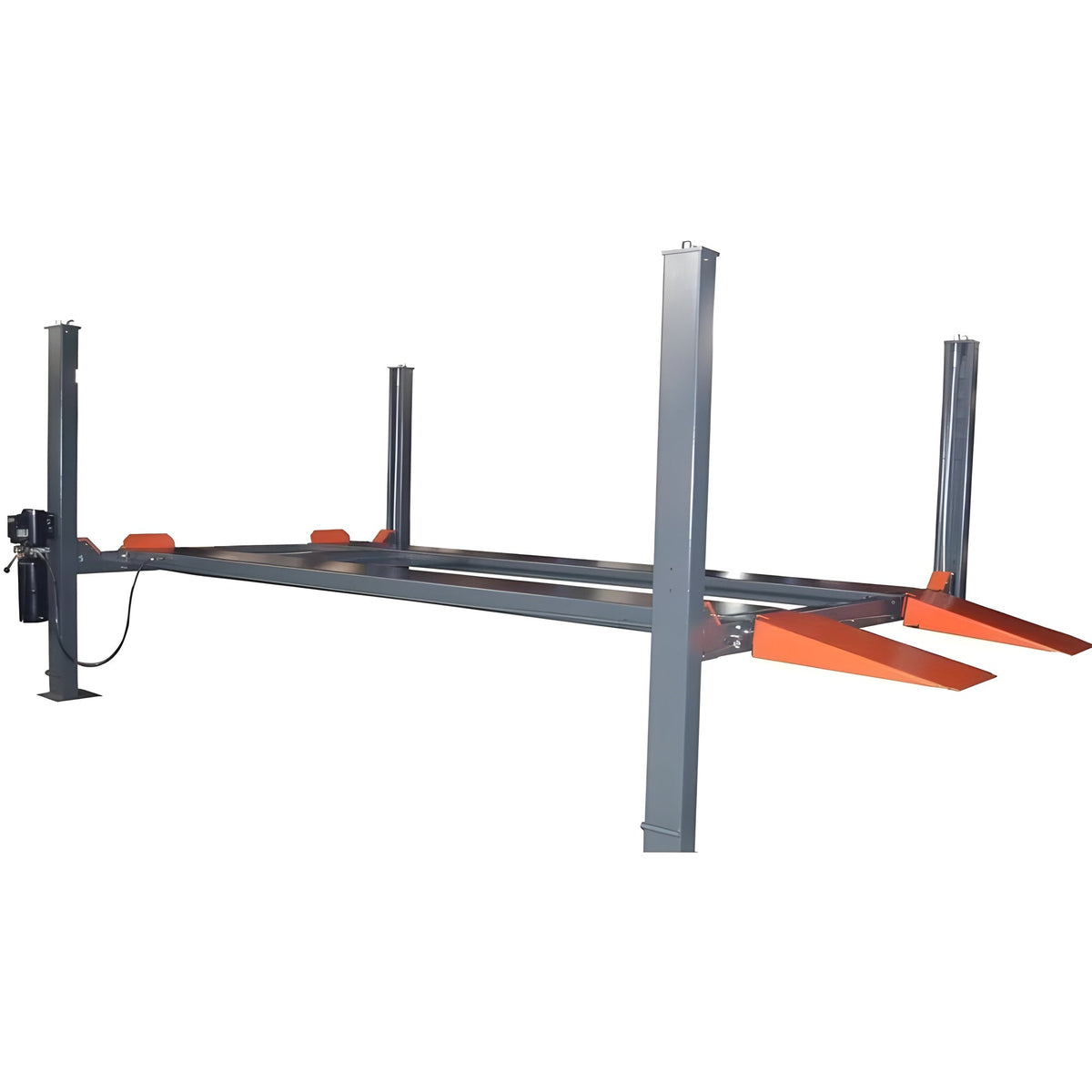

The Katool KT-4H110 is an 11,000 lb capacity four-post lift that earns its floor space twice over: drive-on service for trucks, SUVs, and full-size vehicles, and double-stack parking that puts a second car over your daily driver. It is CE Approved and Certified, built to the 115% dynamic loading standard and tested at 150% static load, on a 6.8" x 4.7" steel post structure.

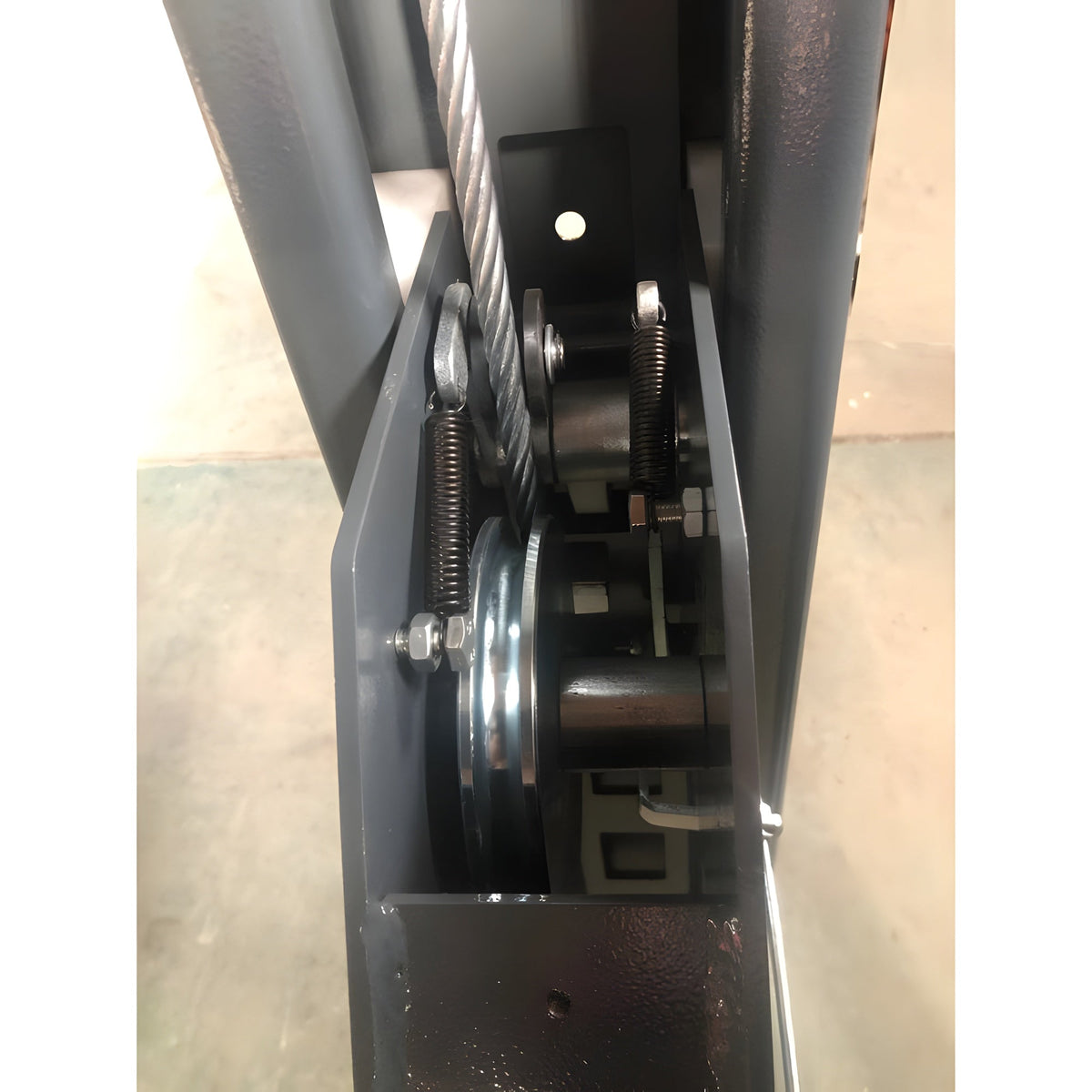

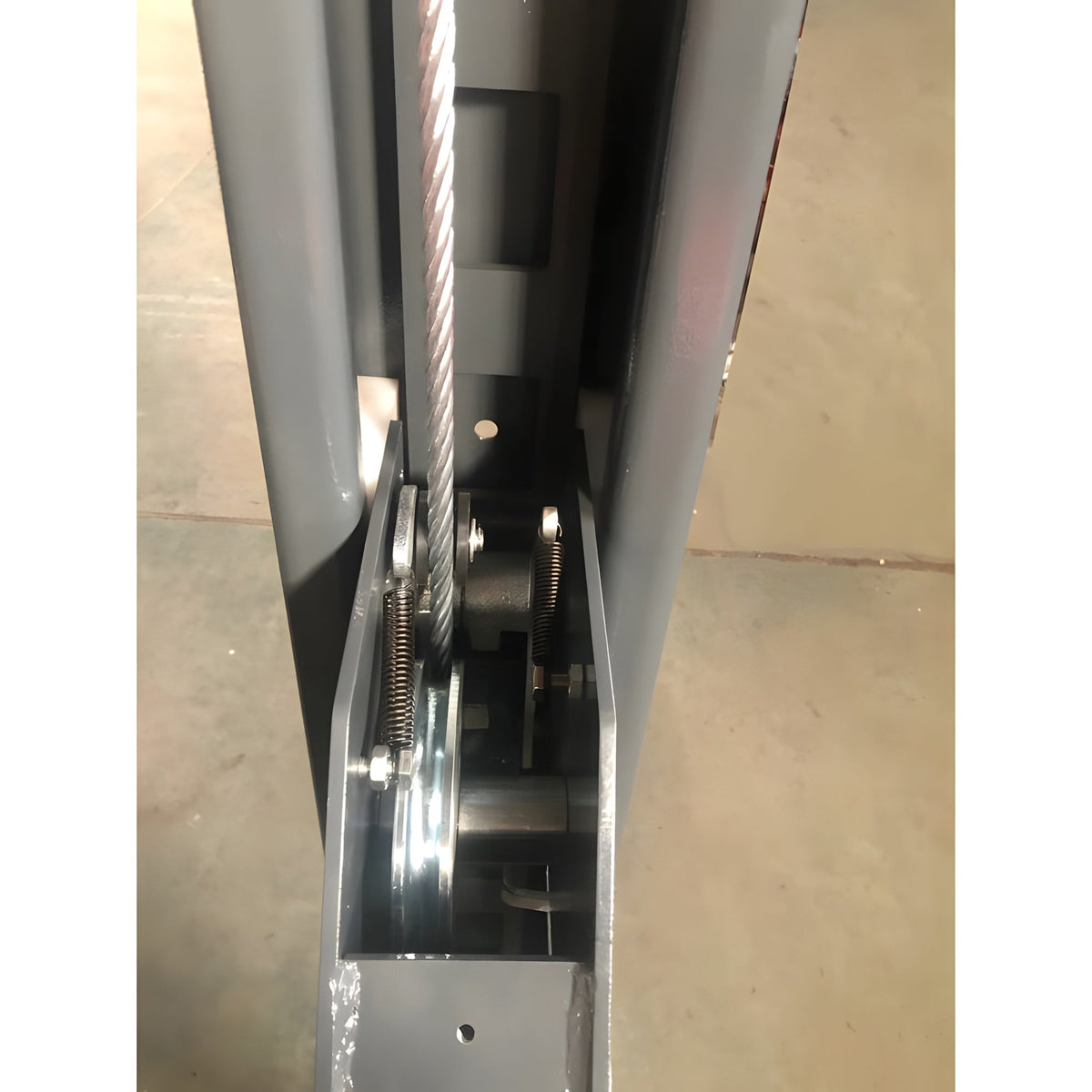

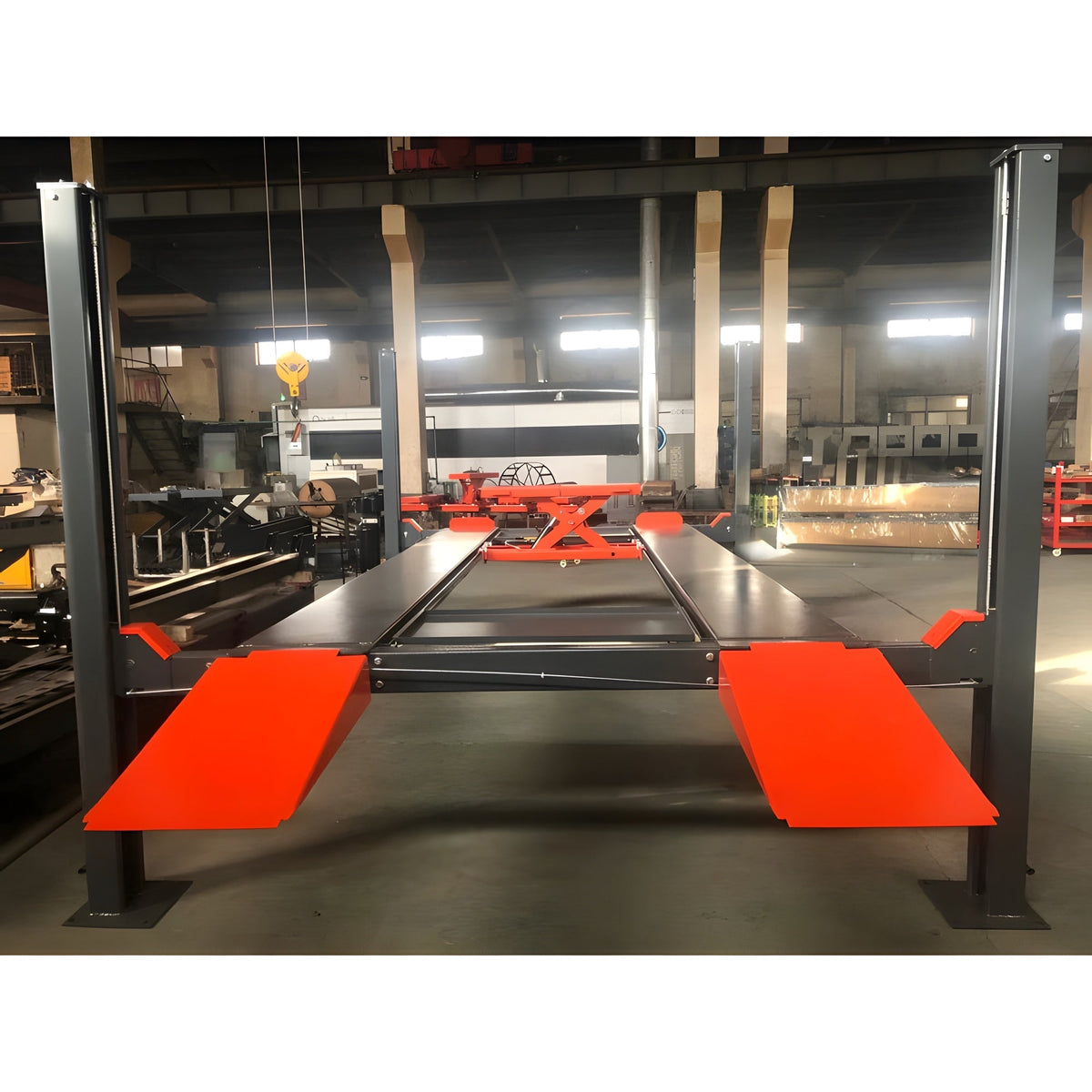

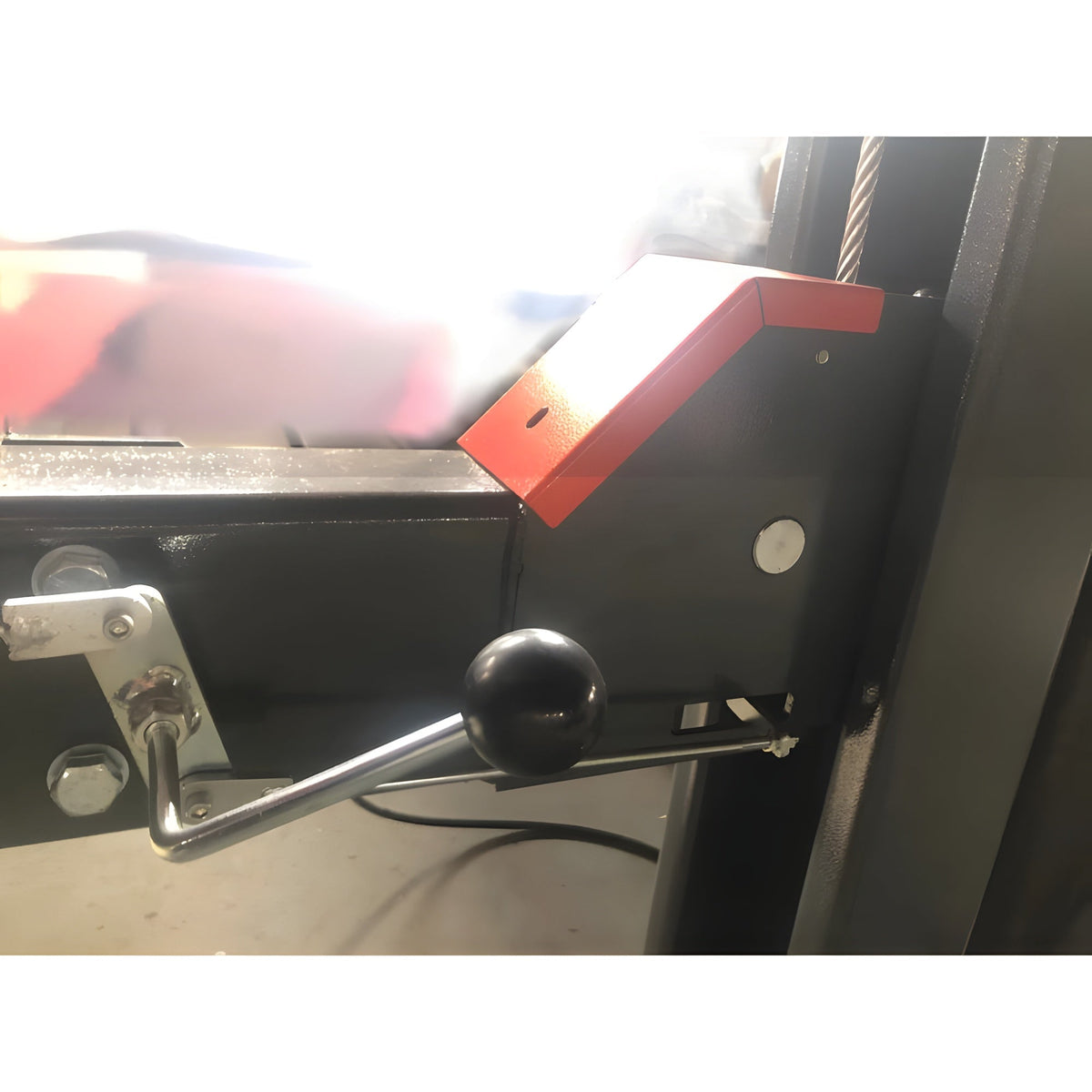

The safety system works in layers: 14 locking positions spaced every 4.7" across the travel, engaged by four mechanical locking devices with redundant primary and secondary locks, plus a slack-cable device at each column. Release is by single-point manual lever. The runways are non-skid diamond plate with 6.2" minimum height — low enough for most cars to drive on without scraping — rising to a 84.25" maximum that leaves standing room underneath.

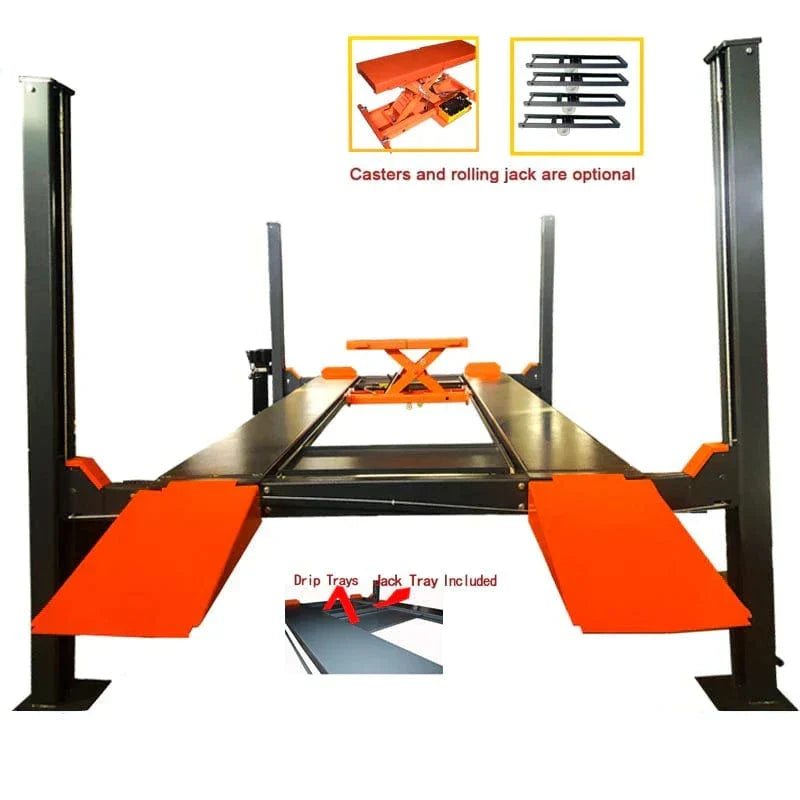

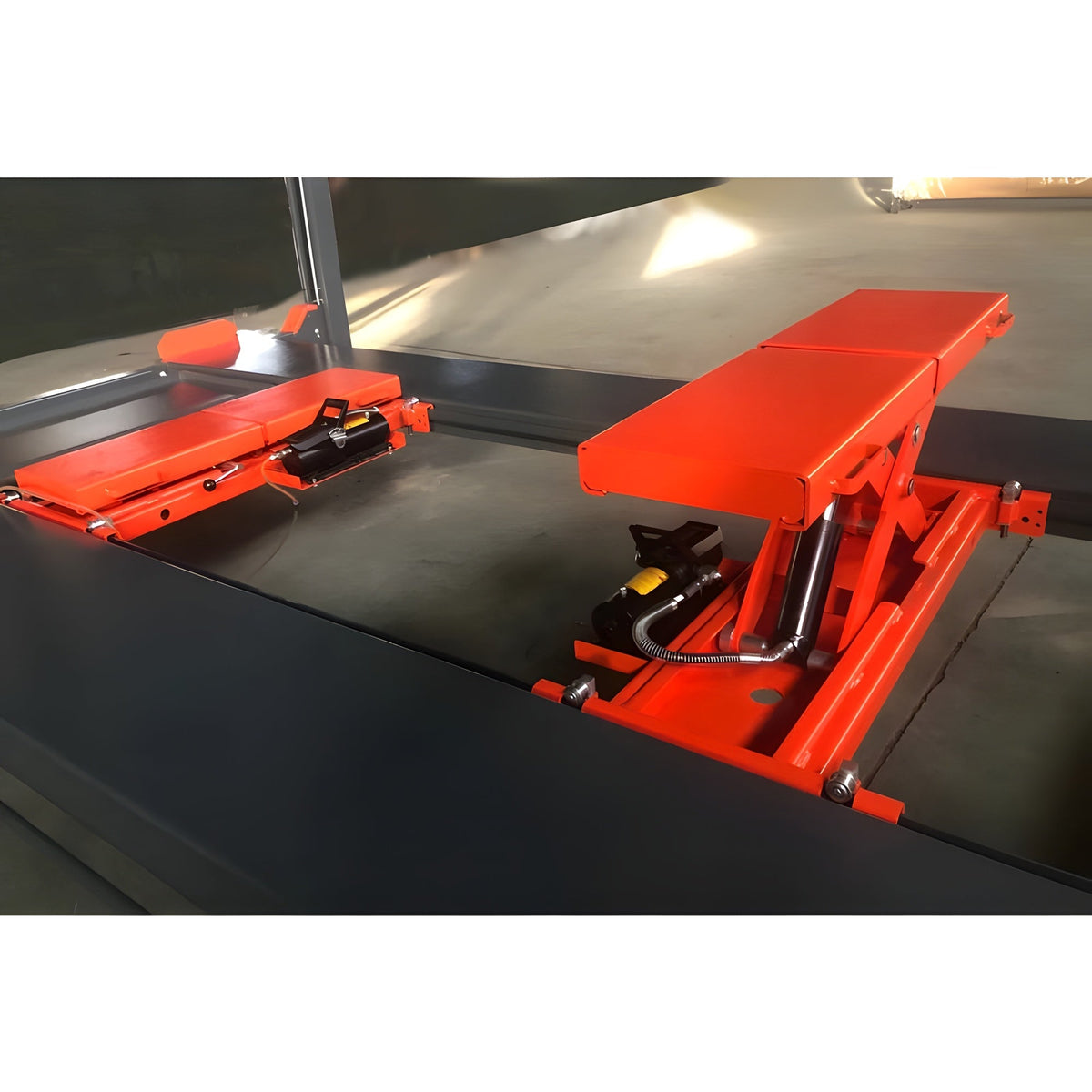

Drip trays and a jack tray come included — the trays catch what the top car drips on the bottom car, and the tray bridges the runways for a bottle jack when wheels-free work comes up. For air/hydraulic wheels-free lifting, the Katool KT-RJ70 7,000 lb rolling jack is built to ride this lift's rails; a caster kit for moving the whole lift is also available.
Power is your choice at checkout: 110V or 220V single-phase — the 110V option means a standard garage outlet runs it. The lift ships from Katool's five US warehouses.
Features
- 11,000 lb capacity, CE Approved — 115% dynamic / 150% static tested.
- 14 locking positions at 4.7" spacing; redundant primary and secondary locks.
- Slack-cable safety devices at each column.
- 6.8" x 4.7" steel posts; non-skid diamond-plate runways.
- Drip trays and jack tray included.

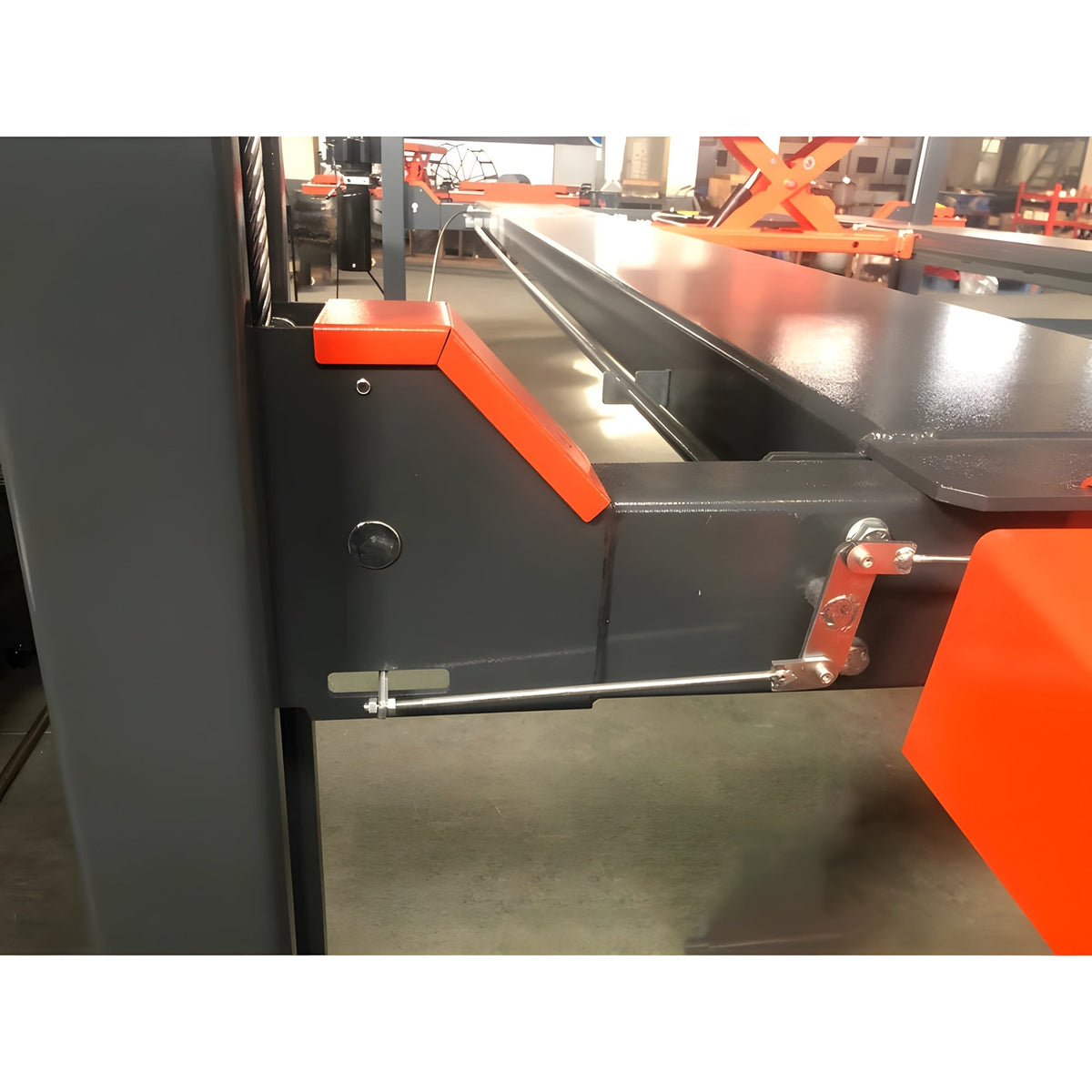

- Single-point manual lock release.
- Power-side column installs at either position.
- 110V or 220V single-phase — selectable at checkout.
- Optional: KT-RJ70 rolling jack, caster kit.
Specifications

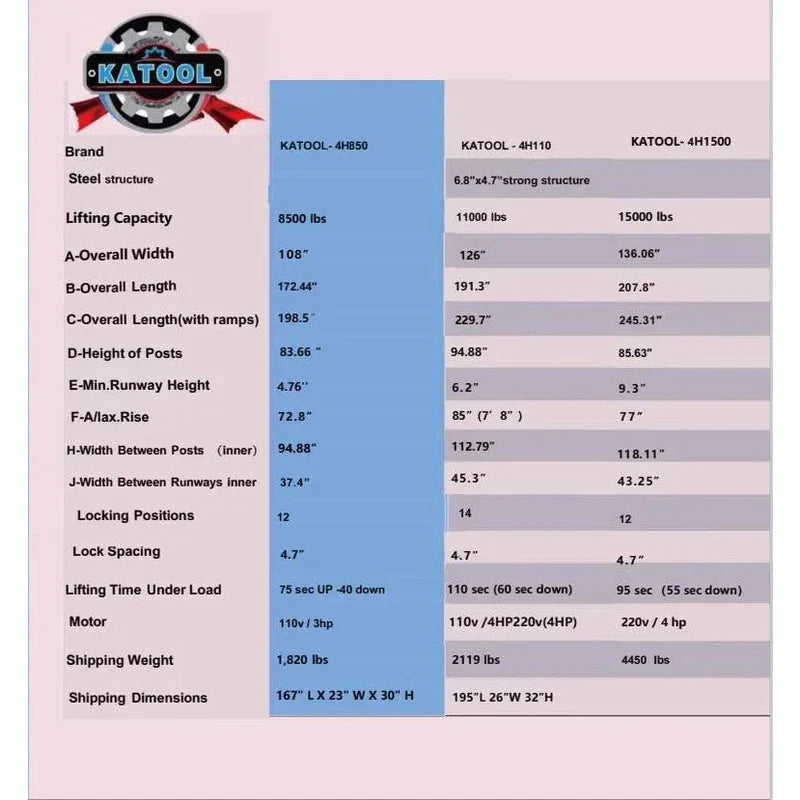

| Katool KT-4H110 Specifications | |
|---|---|
| Lifting capacity | 11,000 lbs (4,990 kg) |
| Max lifting height | 84.25" (2,140 mm) |
| Height of posts | 94.88" (2,410 mm) |
| Overall width | 126" (3,200 mm) |
| Overall length with ramps | 229.73" (5,835 mm) |
| Width inside columns | 112.81" (2,865 mm) |
| Width between runways | 45.3" |
| Min runway height | 6.2" (157 mm) |
| Locking positions | 14, spaced every 4.7" |
| Motor | 110VAC/60Hz/1PH or 220VAC/60Hz/1PH |
| Hydraulic oil | AW-46 or AW-32 in cold climates (not included) |
| Net weight | 2,116 lbs (960 kg) |
| Shipping | 2,119 lbs; 195" x 26" x 32" |
| Concrete: minimum 4" thickness at 3,000 PSI. Verify your slab before installation. | |
Warranty
Katool covers the KT-4H110 with a 12-month all-parts warranty — cylinders, power unit, motor, and electronics — plus a 3-year warranty on structural components. Replacement parts ship free; labor is not included, and claims require the original order number.
FAQ
Can I run it on a normal garage outlet?
Yes — choose the 110V configuration at checkout and it runs on standard household power. The 220V option suits shops with the circuit already in place.
Is it good for car storage?
That is half its job: park the daily driver underneath and store a second vehicle on the runways. The included drip trays keep the top car's fluids off the bottom car.
How do I lift wheels-free on it?
The included jack tray bridges the runways for a bottle jack; for air/hydraulic convenience, add the KT-RJ70 rolling jack, which is sized for this lift's rails.
What concrete do I need?
Minimum 4" thickness rated 3,000 PSI. Four-post lifts spread their load well, but verify your slab before installation.
Documents
Katool KT-4H110 User Manual (PDF)
