Description
Description

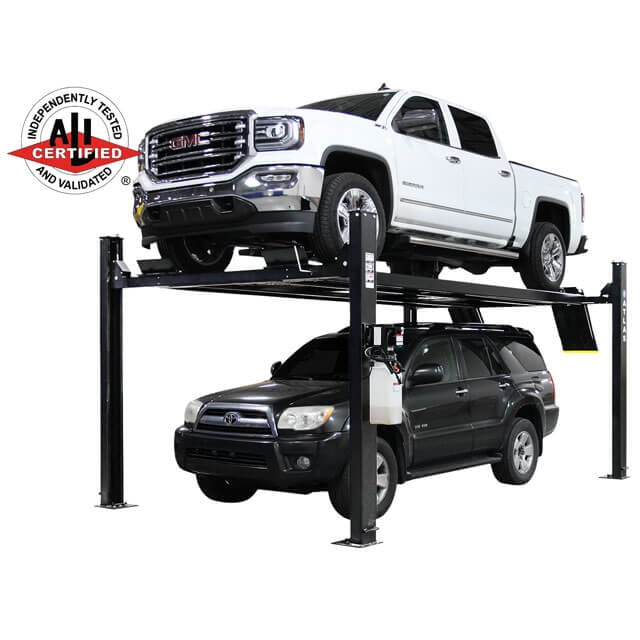

The Atlas 9,000 lbs. ALI Certified Hobbyist Lift
The Atlas APEX9 ALI certified 4 post lift is a heavy duty hobbyist and commercial grade lift and is a true 9000 LB lift. The APEX9 is extra long and allows the lift to handle some of the longest wheel base vehicles out there. The APEX9 is also extra wide allowing even Diesel Duallys to be driven onto the runways. The APEX9 also features extra lift height so everything from Smart Cars to a Dually can be parked both below and on the runways.

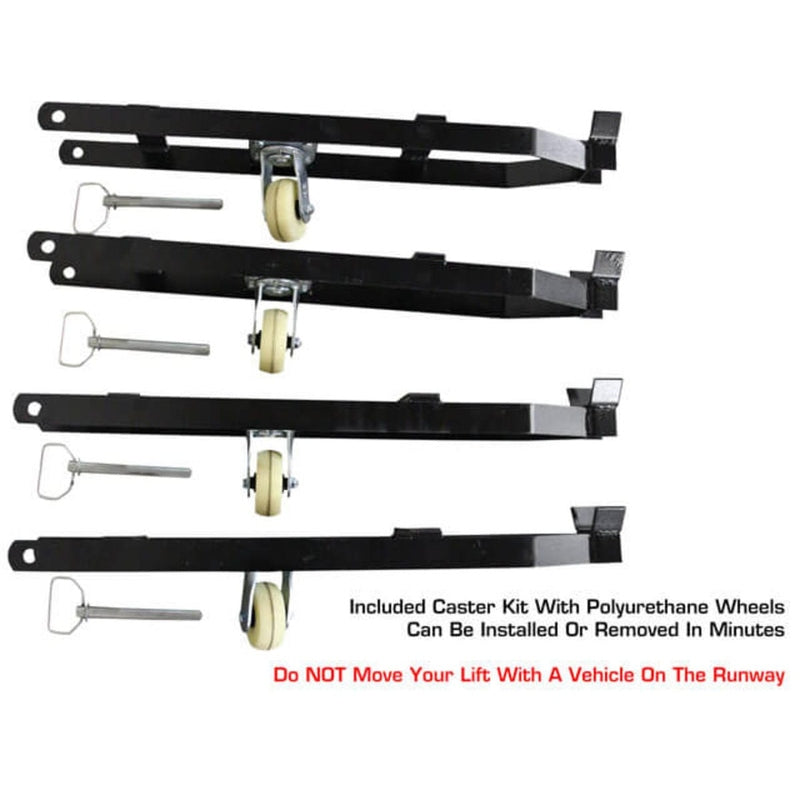

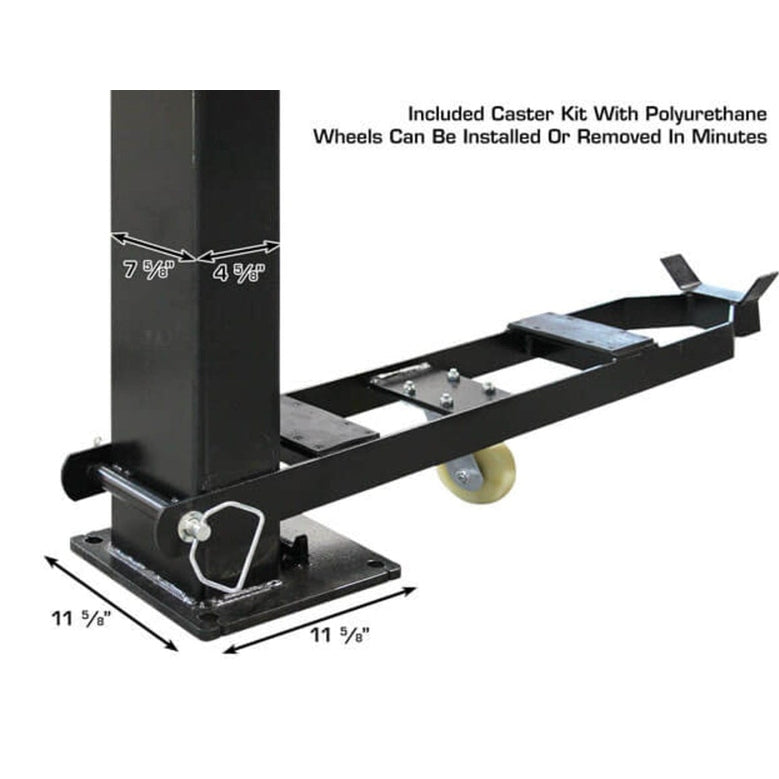

The Atlas APEX9 is even heavier than the Garage PRO9000 making it one of the heaviest portable hobbyist lifts on the market. The APEX9 has many of the features of the Atlas Garage PRO9000 lift including free plastic drip trays, a free steel jack tray, and a caster kit with polyurethane wheels. The caster kit can be installed or removed in just a matter of minutes making the lift portable and allowing it to move between bays or even outside. Finally, the Atlas APEX9 features tracks between the runways to allow the use of a rolling bridge jack (such as the Atlas RJ6BK) on the lift.
The commercial grade features and ALI Certification of the Atlas APEX9 make this lift the perfect choice for automotive service centers or the Mr. Homeowner that needs a PORTABLE professional four post lift.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53' truck.
Features
- ALI Certified Lift
- 9,000 lb. Capacity
- Free Standing/Portable Design
- Heavy Duty
- Extra Tall, Extra Wide & Extra Long
- Powder Coat Finish
- Diamond Plated Runways

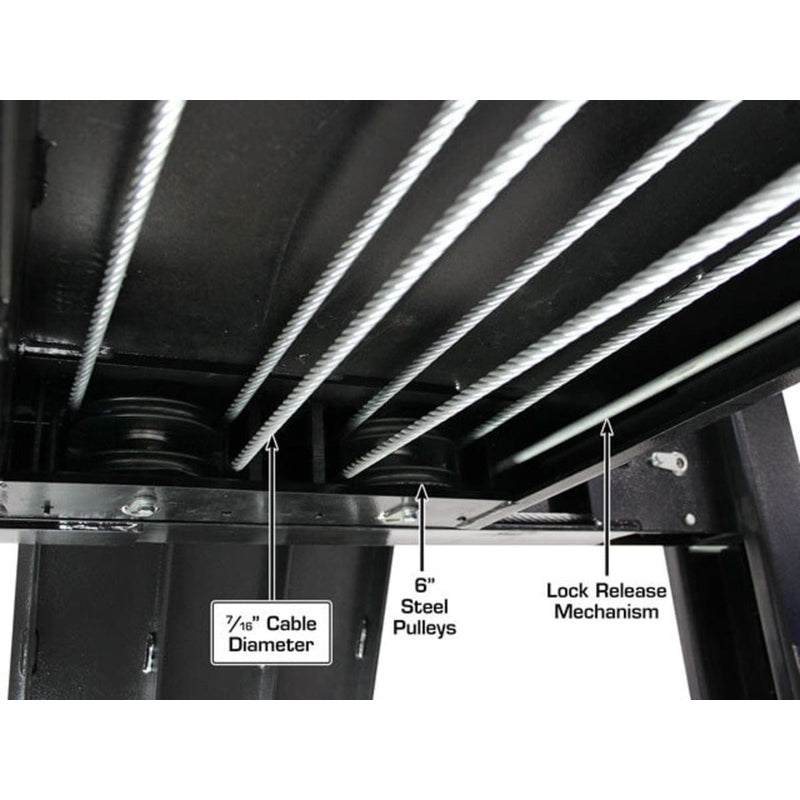

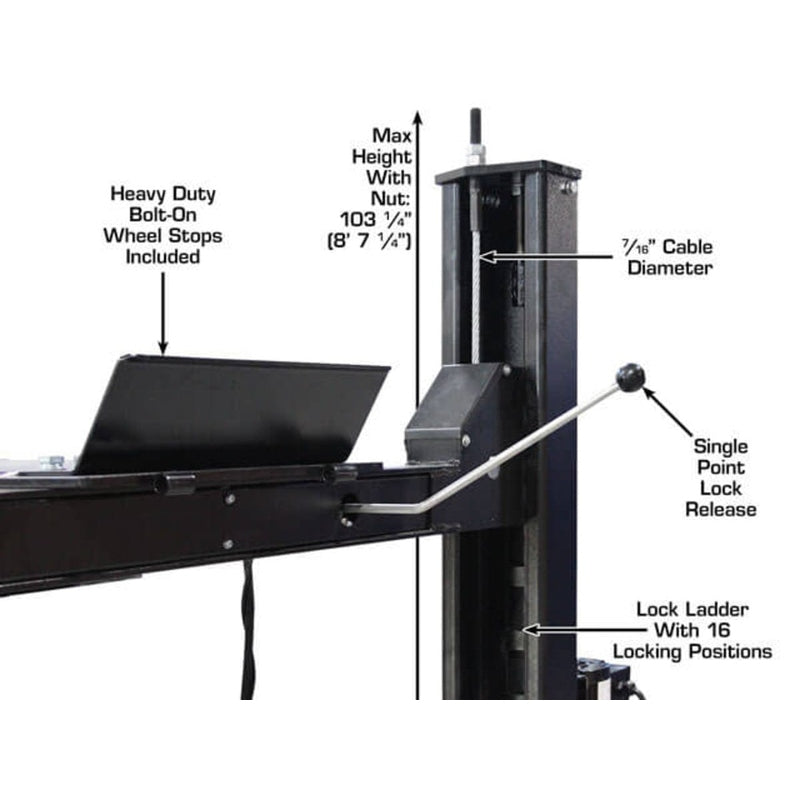

- Single Point Lock Release
- Lock Ladder Design
- Double Lock Safety System
- Steel Approach Ramps Included
- Steel Jack Tray Included
- Four Plastic Drip Trays Included

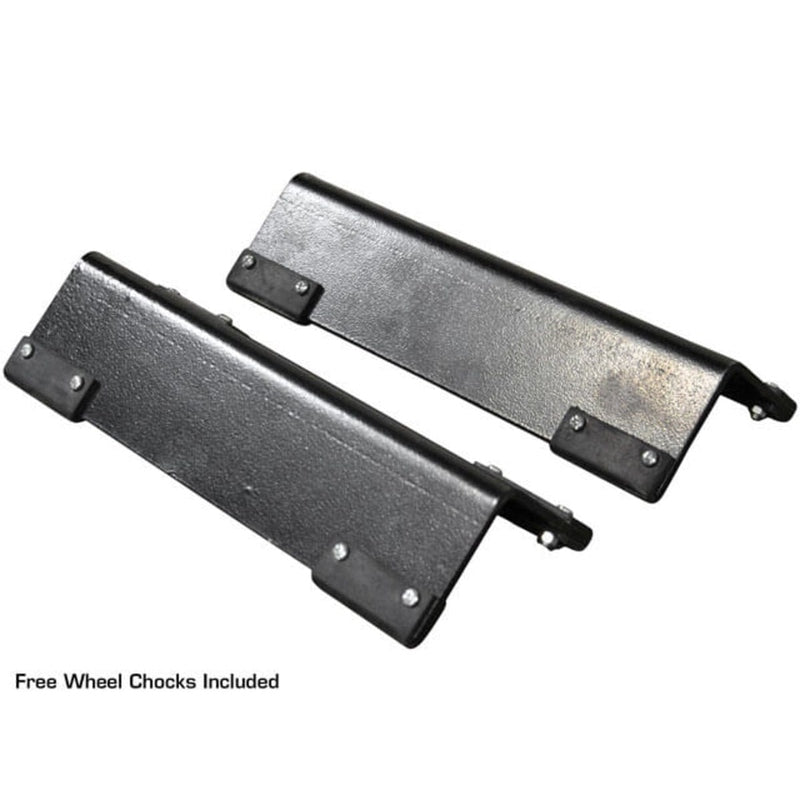

- Two Wheel Chocks Included

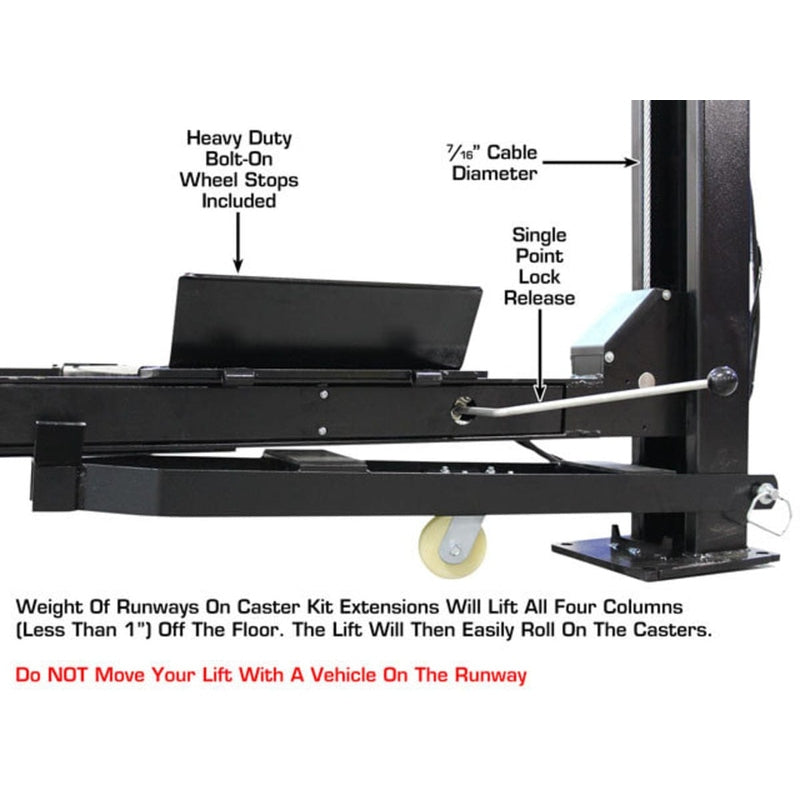

- Caster Kit with Polyurethane wheels Available
- Anchor Bolts Optional (Sold Separately)
- Perfect for Storage or Working on Vehicles

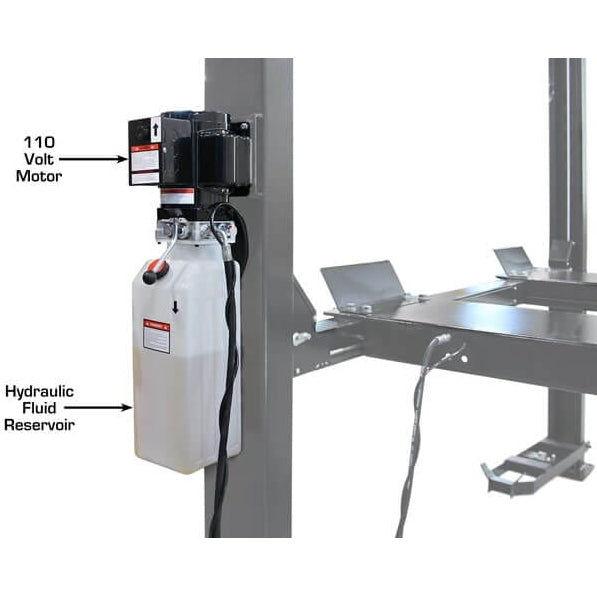

- 110volt Electric Operation (Requires 30amp Breaker)

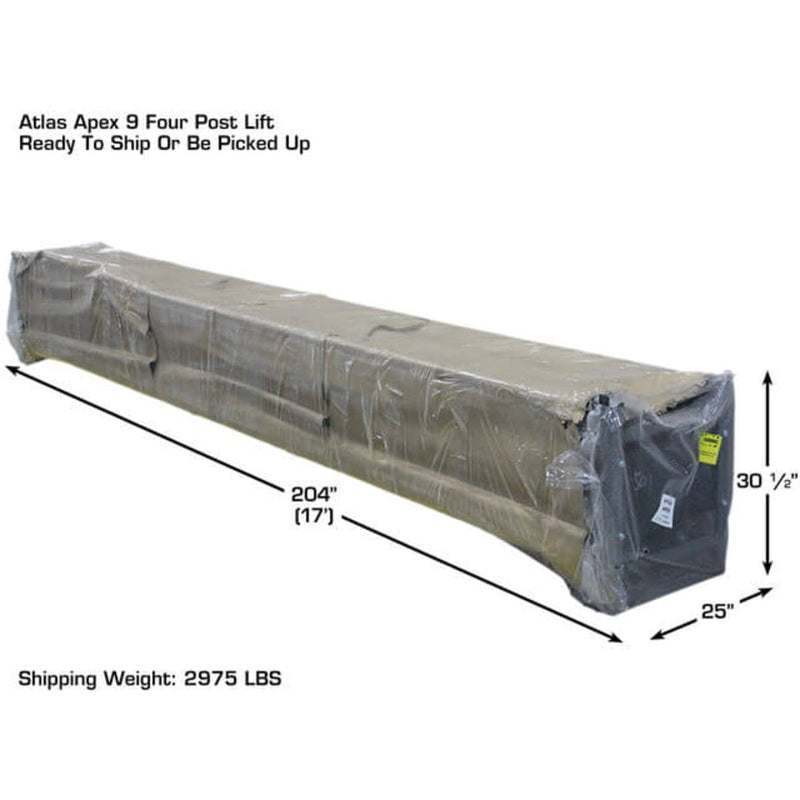

- Shipping Weight: 2,975 lbs.
- 5 yr Structural 2 yr Hydraulic Warranty Parts Only

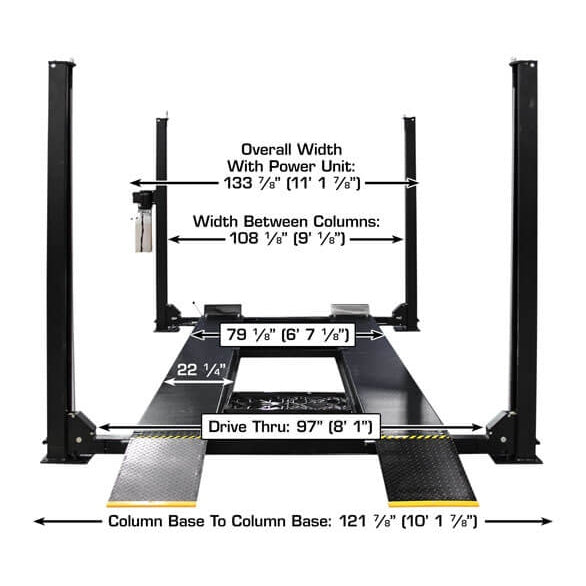

Atlas Apex 9 Specifications
| Capacity | 9,000 lb. |

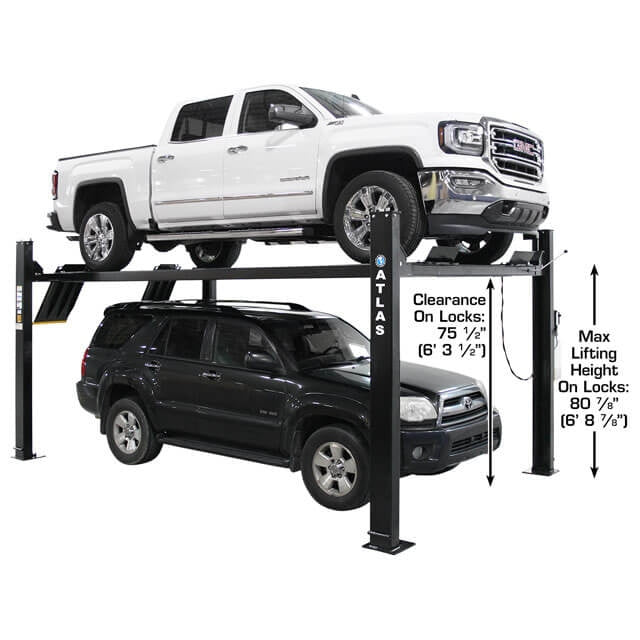

| Lifting Height To Top of Runway | 86" (7' 2") |

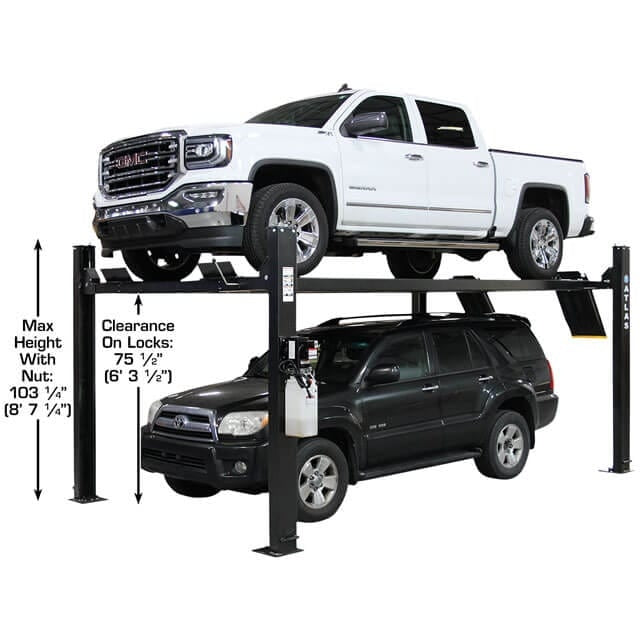

| Clearance Under Runways | 81 1/4" (6' 9 1/4") |
| Height of Columns | 99" (8' 3") |
| Overall Width (Without Motor or Casters) | 121 7/8" (10' 1 7/8") |

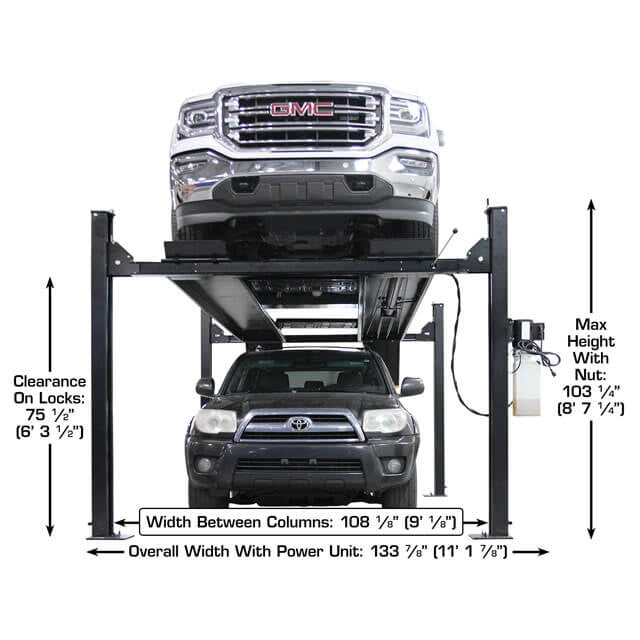

| Overall Width (With Motor) | 133 7/8" (11' 1 7/8") |
| Overall Length without Approach Ramps (Including Lock Release Bar) | 204" (17") |
| Overall Length with Approach Ramps | 227 1/2" (18' 11 1/2") |

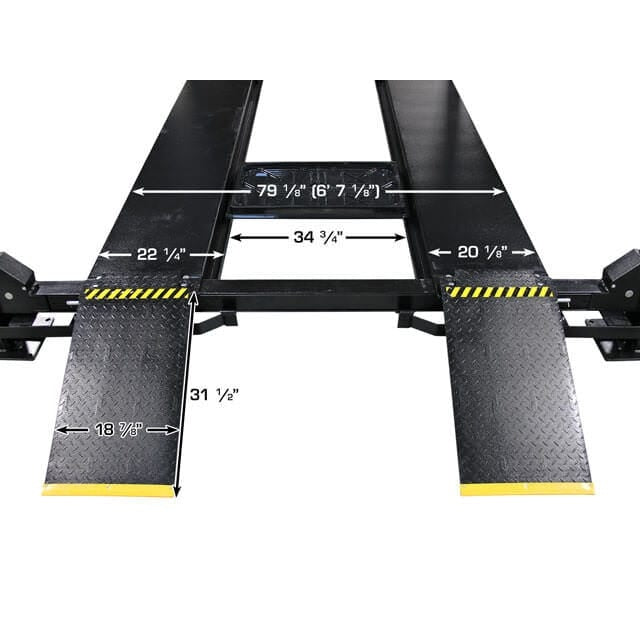

| Approach Ramps | 31 1/2" |

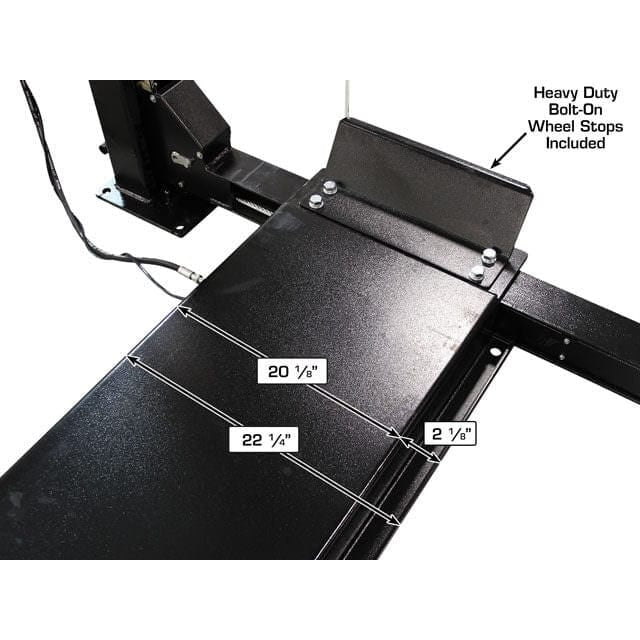

| Runway Width | 20 1/8" |
| Runway Rail Width | 2" |

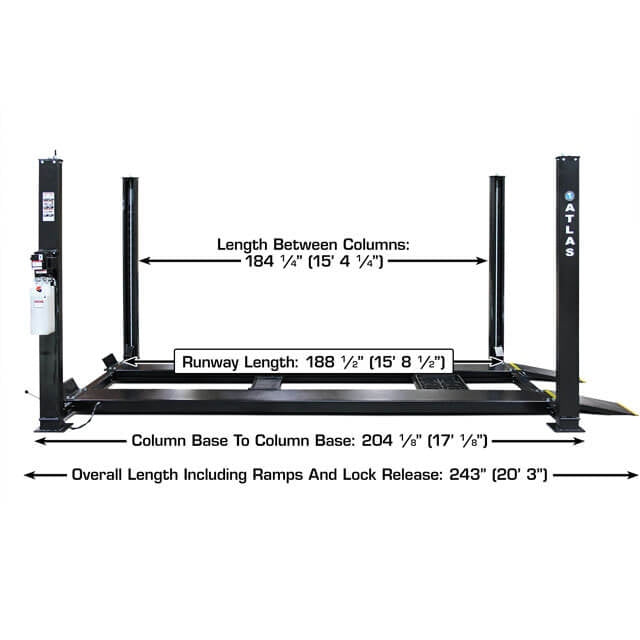

| Runway Length | 196 1/2" (16' 4 1/2") |
| Runway Thickness | 4 3/4" |
| Width Between Runways | 38 7/8" (3' 2 7/8") |
| Width Between Runway Rails | 34 3/4" (2' 10 3/4") |
| Outside Runway to Outside Runway | 79" (6' 7") |
| Clearance Between Columns | 108 1/8" (9' 1/8") |

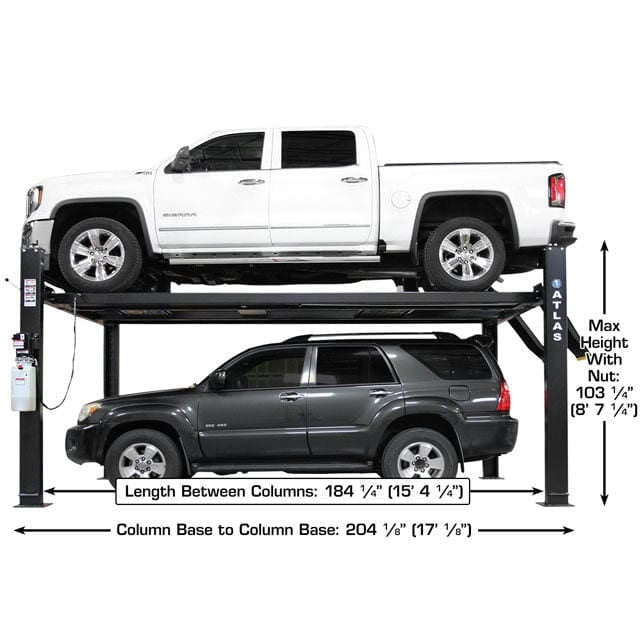

| Length Between Columns | 184 1/4" (15' 4 1/4") |
| Maximum Wheel Base | 184" (15' 4") |
| Drive Thru (Outside of tire to outside of tire) | 98 5/8" (8' 2 5/8") |
| Motor/Electrical Requirement | 110 Volt, 30 AMP BREAKER REQUIRED |
| Shipping Weight | 2,975 lb. |
